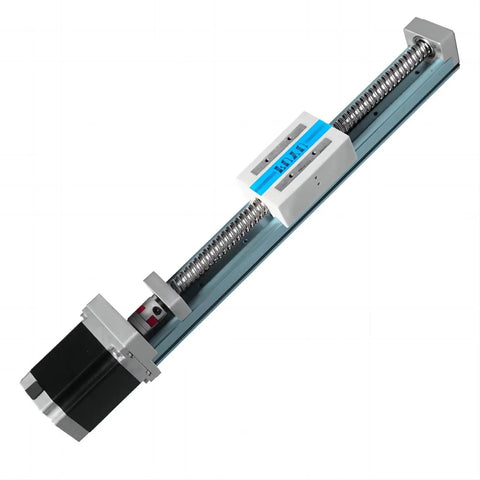

Motorized Ball Screw Linear Guide Module for CNC Linear Stage with Nema 23 Stepper Motor 300mm Stroke Work Size High Precision Anti Corrosion Construction Featuring G1610 Ball Screw for Long Life and Cost Effective Performance
✔️ 300mm stroke, NEMA23 motor, 20kg load, single unit
This motorized linear guide module combines a precision ball screw with a compact rail system, ideal for CNC linear stages, automation systems, and tight-space equipment. It features anti-corrosion construction and upgraded mounting holes for easier installation.
✅ Travel up to 1000 mm with the G1610 ball screw✅ Repeatability ±0.02 mm for reliable positioning

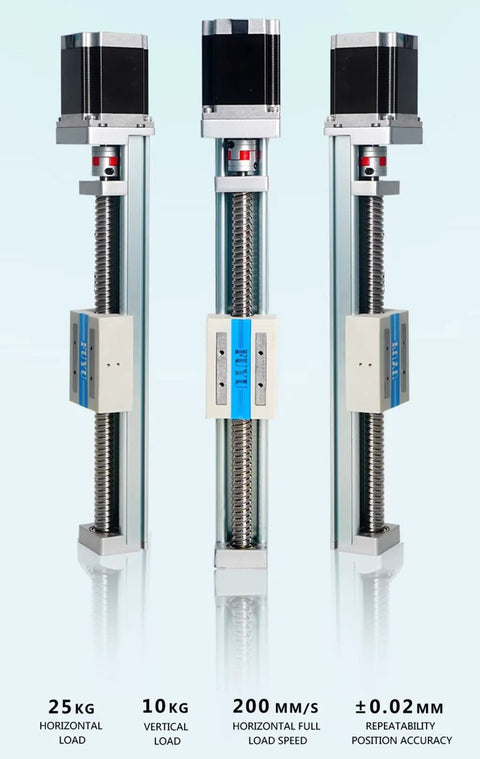

✅ Horizontal load capacity 20 kg for sturdy operation
✅ NEMA 23 stepper motor up to 1200 rpm with low noise
✅ Upside-down mounting supported and 10 kg flip load

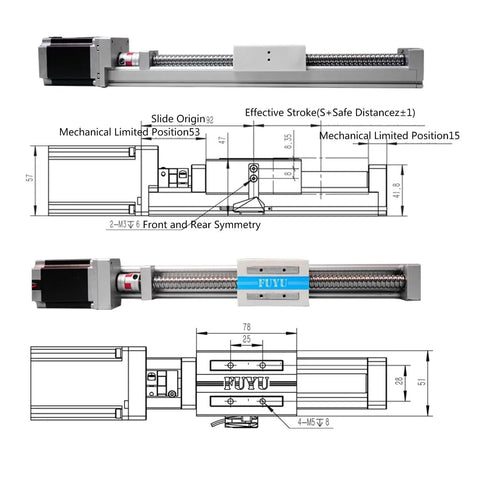

✅ Slim rail profile with M5 screw holes on slide base for easy installation
💡 What is a motorized linear guide module used for in CNC and precision automation? It's a handy unit that delivers precise, programmable motion along a single axis.
- Used to position workpieces or tools on CNC machines, engraving systems, and laser setups with a linear slide unit
- Combines a sealed ball bearing system and ball screw drive for smooth travel and long life
- Ceramic bearing variants exist in some linear slide units for high-speed/high-load use
- Works with stepper or servo motors to balance speed, torque, and control
- Ideal for tight spaces and easy mounting, including upside-down configurations
