Mini Linear Motion Guide Actuators Linear Rail Ball Screw Small Linear Motorized Nema 14 2-Phase Stepper Motor 100mm Stroke

Mini Linear Motion Guide Actuators with 100mm Stroke - Aluminum Linear Rail, NEMA 14 2-Phase Stepper Motor, Single Unit

✔️ Compact, lightweight aluminum alloy linear guide with no steel parts, single-pack, ready for CNC routers, optical labs, and precision positioning.

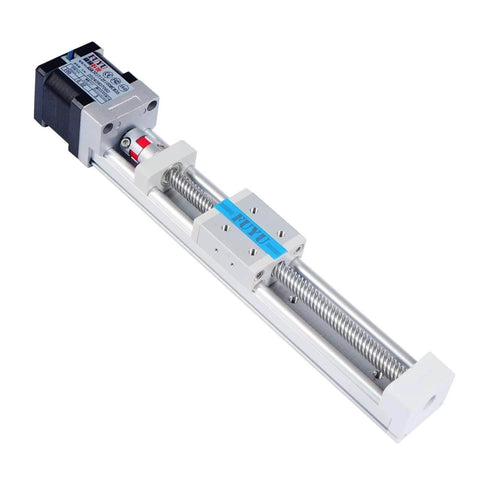

This compact linear motion system combines a lightweight aluminum rail with a built-in NEMA 14 2-phase stepper motor. It’s designed for precise positioning in small automation tasks and lab setups where quiet, smooth movement helps maintain accuracy. The unit is ideal for CNC routers, inspection equipment, optical labs, and other applications requiring precise, dependable motion.

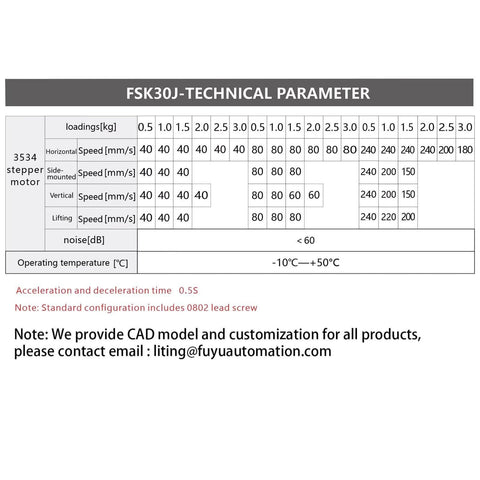

✅ Stroke options: 50 mm to 500 mm (choose from 50, 100, 150, 200, 300, 500 mm); default screw lead TR8*02; TR8*04 and TR8*12 available for customization
✅ Position accuracy: ±0.02 mm for repeatable displacement and alignment

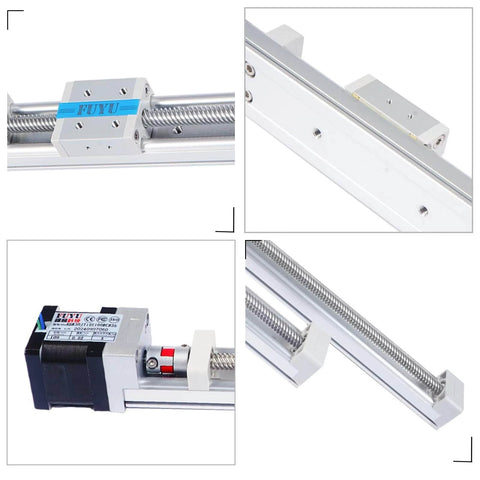

✅ Material and build: aluminum alloy linear guide, no steel parts, lightweight and corrosion resistant

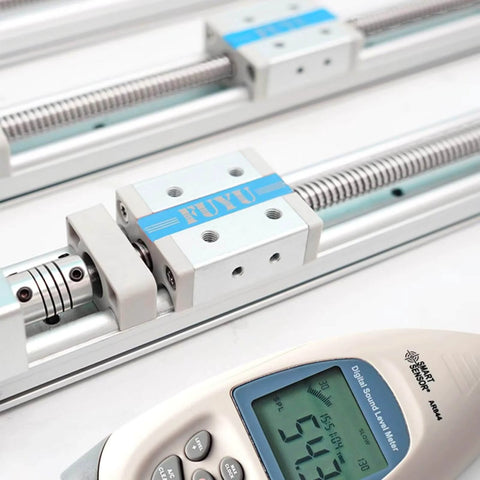

✅ Noise and operation: low noise under 60 dB for quiet environments

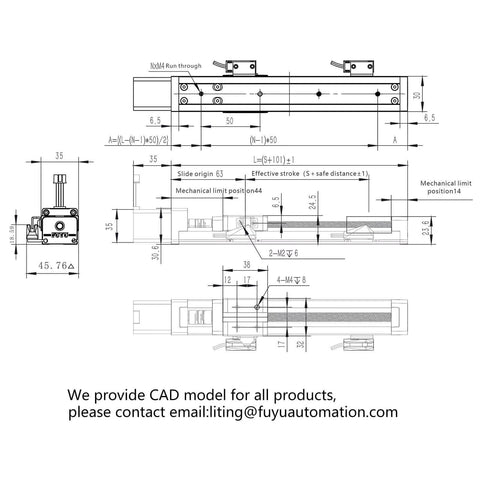

✅ Mounting and installation: M4 screws on sides and baseboard for easy installation
✅ Drive and control: integrated NEMA 14 (3534) 2-phase stepper motor for straightforward drive
✅ Applications: cross-type linear stage for CNC routers, precision measurement, optical labs, and mechanical positioning tasks

This handy setup delivers precise, quiet, and repeatable movement for compact automation tasks and lab work.

💡 What is a compact linear motion guide with a NEMA 14 2-phase motor used for in CNC and precision positioning systems?

Answer: This unit is designed to provide precise, repeatable motion in compact automation setups.

• precision linear motion guide with integrated NEMA 14 2-phase motor for compact automation
• stroke lengths from 50 to 500 mm to fit various machine footprints
• aluminum rail with low friction for smooth, reliable motion
