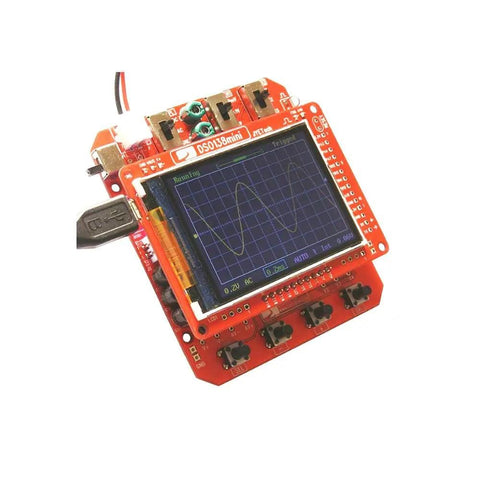

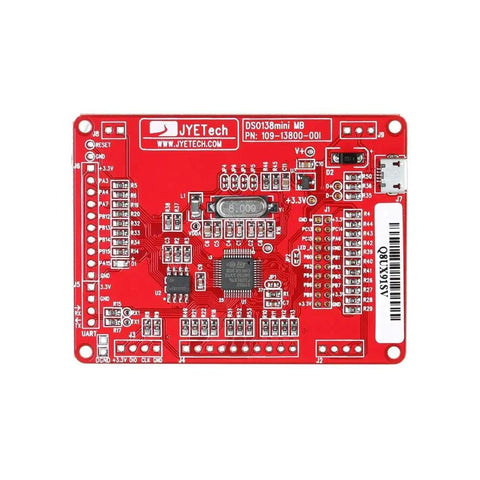

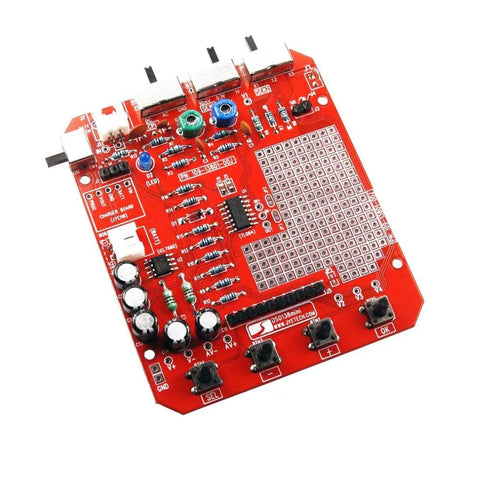

Mini DSO138 Digital Oscilloscope DIY Kit For Electronics Hobbyists And Students With ARM Cortex M3 Processor And Color TFT Display, Maker Friendly Portable Learning Set For Education, Training, And Competitions
✔️ Handheld scope: 1Msps, 12-bit, 0-200kHz, USB or battery

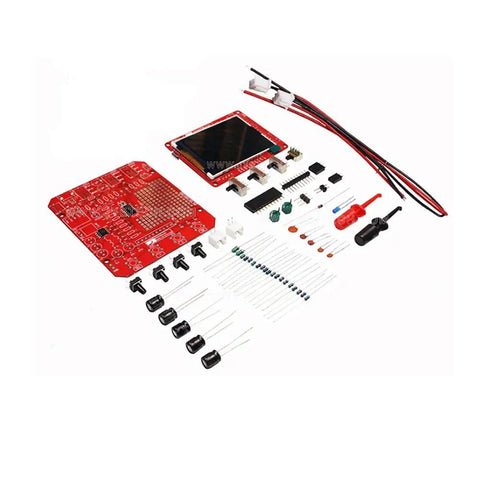

This compact oscilloscope is a hands-on learning tool for electronics students and hobbyists, designed for classrooms, labs, and field projects. It uses an ARM Cortex-M3 processor and a color TFT display for clear waveform viewing. Package includes 1 set of the DSO138mini kit for hands-on training.
✅ 1Msps real-time sampling rate
✅ 12-bit precision
✅ 0-200kHz analog bandwidth
✅ Input impedance 1 MΩ; max input 50 Vpp (1:1) / 400 Vpp (10:1)
✅ Horizontal time base 10 us/Div to 50 s/Div
✅ Trigger modes automatic, conventional and single; rising or falling edge
✅ Hold function and pre-trigger observe
✅ Waveform data output to PC via serial port and USB power support
💡 What is a typical use case for a compact digital oscilloscope?
These handy probes help diagnose circuits and validate waveforms in real world projects.
- Educational labs and student projects- Field diagnostics for service and repair
- Timing analysis for digital signals and audio electronics
