Micrometer Fine Tuning Cross Roller Linear Stage For Rock Solid X Axis Travel 60x60mm Aluminum Translation Table With Manual Adjustment And Smooth Glide Performance

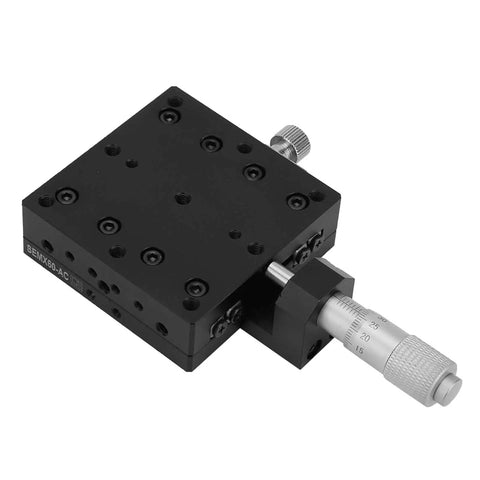

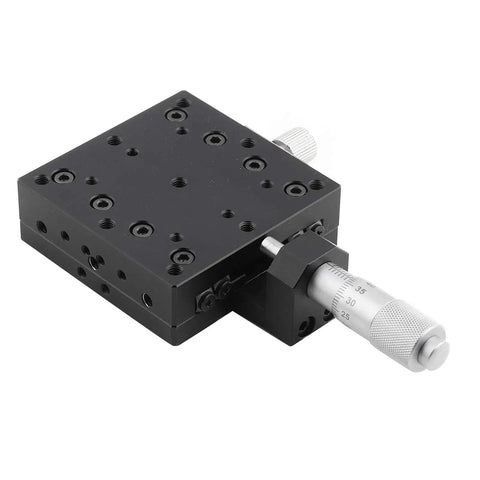

Micrometer Cross-Roller Linear Stage, 60x60mm Aluminum
✔️ Single unit in package: 60x60mm aluminum micrometer stage

The micrometer fine tuning cross-roller linear stage provides precise X-axis translation in a compact 60x60mm aluminum form. Built from high-strength aluminum alloy with a black anodized finish for durability, it delivers stable, repeatable motion for alignment, metrology, optical experiments, and precise displacement control.

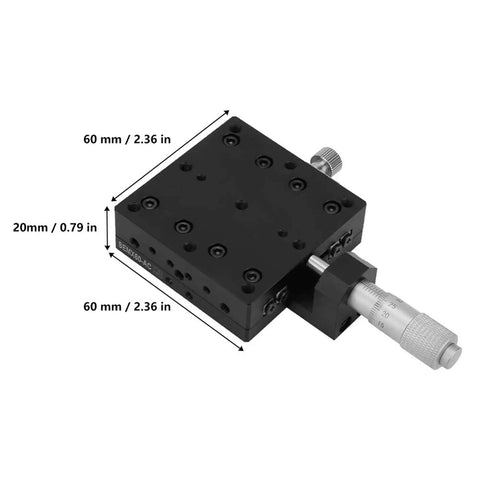

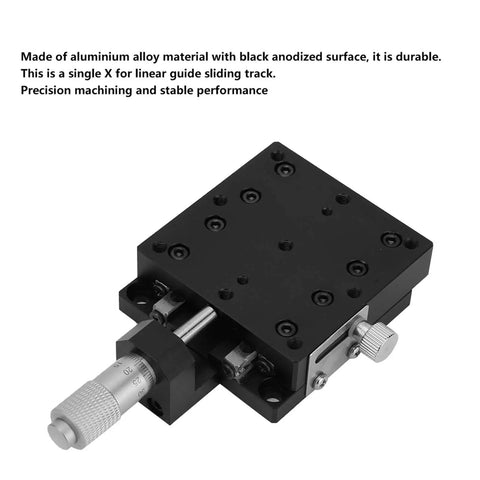

✅ Table size 60x60 mm (2.36x2.36 in); aluminum alloy with black anodized surface
✅ Load rating 49 N (11 lb); suitable for light-to-medium positioning tasks
✅ Stroke ±6.5 mm (±0.256 in) for fine travel
✅ Parallelism 30 μm; moving parallelism 10 μm; true straightness 3 μm
✅ Cross-roller linear guide rail with micrometer differential head for fine adjustment

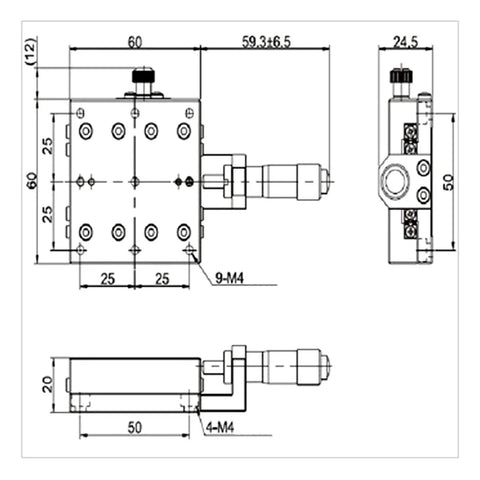

✅ Overall size 119.3 x 72 x 24.5 mm (4.7 x 2.8 x 1.0 in); weight ~300 g (10.6 oz)

💡 What is a micrometer-driven cross-roller linear stage used for in precise X-axis alignment?

It provides handy, compact precision for alignment tasks in labs and production.

- Handy for precise X-axis alignment in optical benches and metrology setups. - Improves repeatability and reduces tilt with a cross-roller guide. - Enables micron-level displacement control when paired with a micrometer head.
