Micro Worm Gear Motor 050 N30 N20 3V To 12V DC Right Angle Output Shaft All Metal Gearbox Slow Speed Reduction For Robotics Projects 17 To 68 RPM Tiny Yet Mighty High Torque

Tiny Worm Gear Motor 050 N30/N20, 3-12V, Right-Angle Pack 1
✔️ Pack: 1 unit; voltage 3-12V; speed 17-68 RPM; all-metal gearbox

The micro worm gear motor is a compact DC motor with an integrated worm gear reduction, delivering slow, high-torque output ideal for robotics, hobby projects, and precision automation. This right-angle version fits tight spaces and simplifies cable routing.

✅ Reduction ratios: A 1030:1, B 603:1, C 302:1, D 236:1, E 118:1, F 79:1, G 42:1, H 21:1
✅ Voltage range: 3V-12V

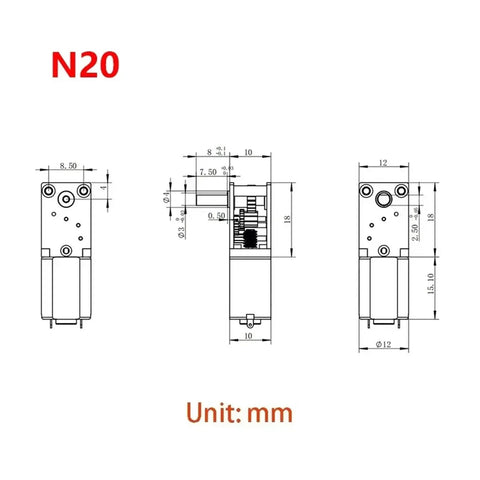

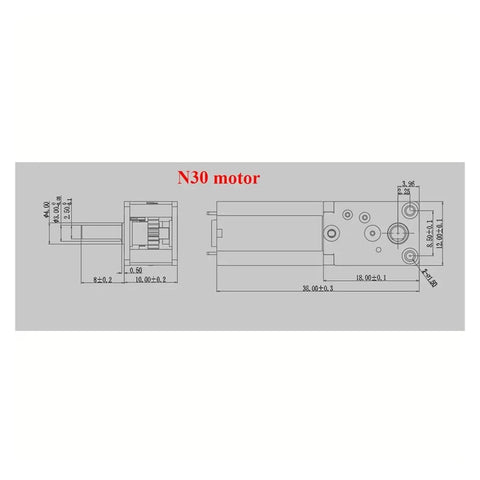

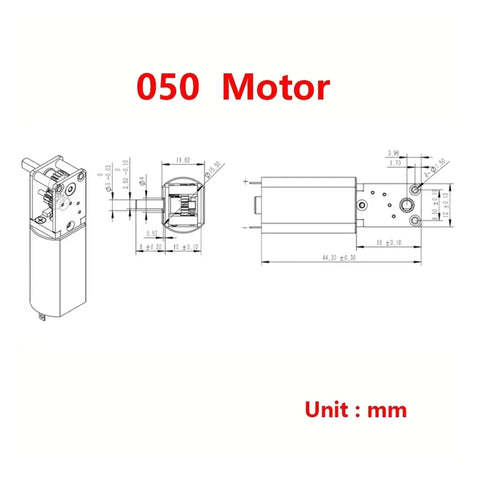

✅ Shaft length 8mm, diameter 3mm (2.5mm D shaft)
✅ Weight: 24g (050), 15.5g (N30), 13g (N20)
✅ Output: Right-angle, all-metal gearbox

💡 What is a compact worm gear motor used for in hobby robotics?

A compact worm gear motor is handy for small machines needing precise slow motion and good torque. - Handy for micro-robotics and handheld devices - Enables controlled speed reduction and high starting torque - Works on 3-12V DC, with multiple reduction ratios - All-metal gearboxes withstand long-term use
