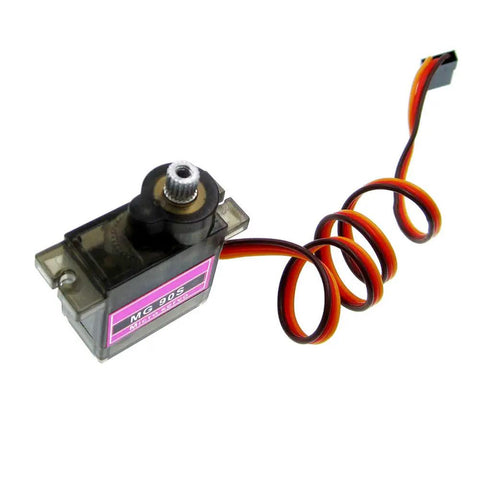

MG90S 9G Micro Servo Motors, 3 Pack, Metal Gear, High Torque, Low Noise, Double Ball Bearing, Fast 0.11-0.12s Per 60 Degrees At 4.8-6V, Compatible With RC Robots, Boats, Planes, Cars, Helicopters For Precise Control
✔️ 9g metal gear micro servos, high torque, low noise, 3-pack
These compact metal-gear servos deliver precise angular control for RC toys, robotics, and DIY projects. They are a great fit for fixed-wing aircraft, boats, cars, small robots, and mechanical arms.

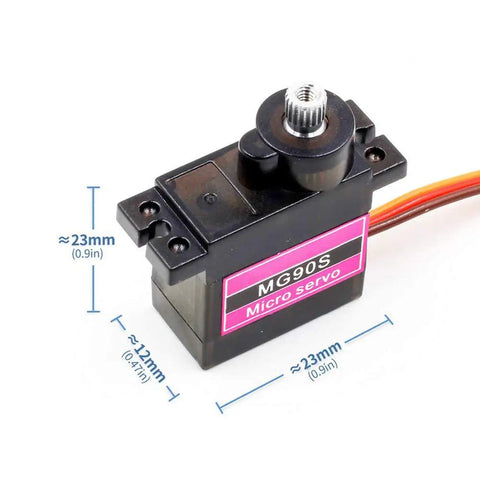

✅ Size: 22.9 x 12.2 x 28.5 mm (0.90 x 0.48 x 1.12 in)
✅ Weight: 12 g
✅ Operating voltage: 4.8-6 V
✅ Speed (no load): 0.12±0.01 s/60° at 4.8 V; 0.11±0.01 s/60° at 6 V
✅ Stall torque: 1.5±0.01 kg·cm at 4.8 V; 1.8±0.01 kg·cm at 6 V
✅ Stall current: 700±50 mA at 4.8 V; 900±50 mA at 6 V
✅ Idle current: 4±1 mA
✅ Operating temperature: -10 to 50°C
✅ Pulse width range: 800-2200 μs; Neutral: 1500 μs
✅ Centering deviation: ≤1°
✅ Left/Right traveling deviation: ≤3°
✅ Max traveling angle: ~145° (800-2200 μs)
✅ Control input: PWM signal with analog controller

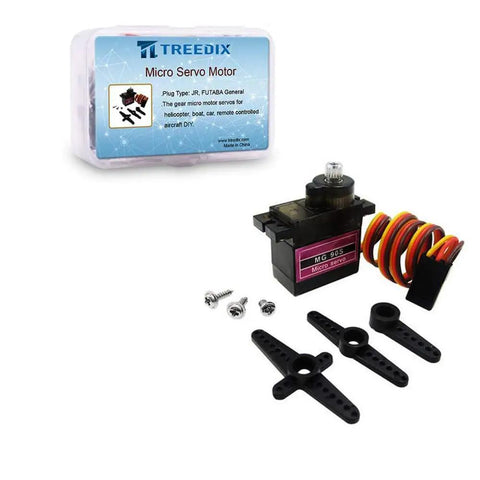

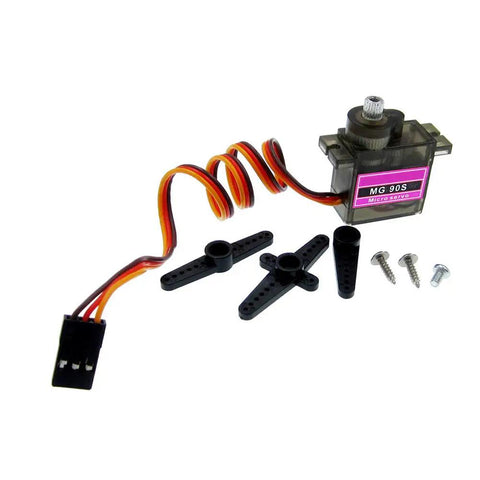

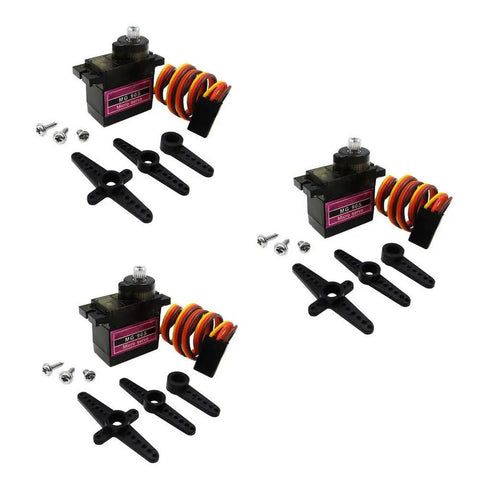

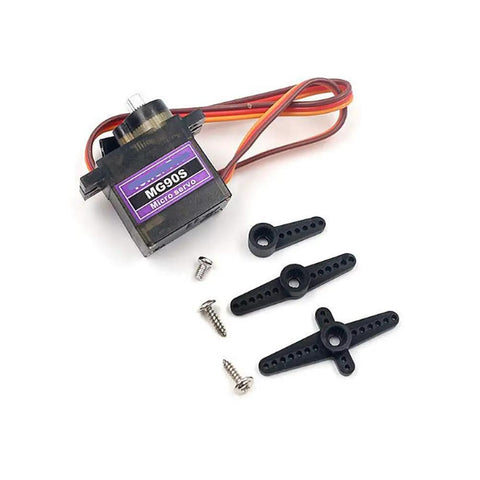

✅ Package includes: 3 x servo motors, 9 x rudder discs, 9 x fixing screws
💡 What is a good use for a small metal gear servo in RC projects? A quick handy summary: - precise angular control for control surfaces and arms - works with common PWM signals and 4.8-6 V power - compact, durable metal gears with double bearings - low noise and fast response under light loads
