MG1 9V Series Digital Pressure Gauge With LCD Display 1000 Psi Operating Pressure Battery Powered 9V 1 Percent Accuracy 2.5 Inch Dial Stainless Steel Wetted Parts ABS Thermoplastic Case With Rubber Boot 1/4-18 NPT Male Connector SSI Technologies
✔️ Battery powered MG1-9V, single unit, 2.5in dial, ±1%

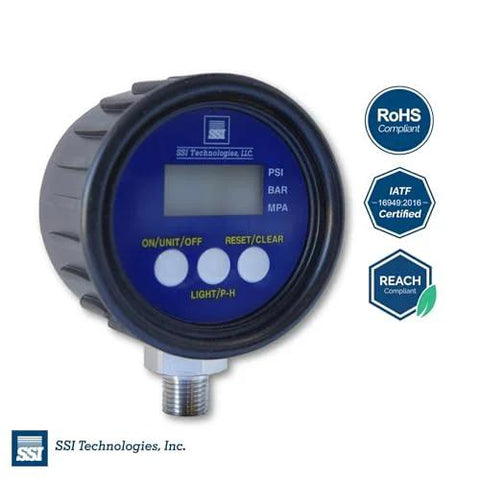

The MG1-9V is a compact, battery-powered digital pressure gauge built for tough industrial use. It reads up to 1000 psi and features a 2.5 inch dial (63.5 mm) with a yellow-green backlit LCD, a robust ABS thermoplastic case, and a 304L stainless steel ¼-18 NPT male connection. This gauge is ideal for general testing, process control, MRO, refrigeration, hydraulics, pneumatics, and hydrogen storage in environments compatible with 316L/304L stainless steel.
✅ Battery powered: runs on one 9V battery (included)✅ 2.5 in LCD display with yellow-green backlight
✅ Stainless steel wetted parts resist pitting corrosion
✅ 1/4-18 NPT male connection (304L SS)
✅ Accurate to ±1% full scale with temperature compensation
✅ Multi-unit readings PSI/BAR/MPa
✅ Battery saver auto-off after 3 minutes
💡 What is a digital pressure gauge used for in industrial process control?
A handy device for monitoring system pressure and ensuring safety and efficiency.
- handy for field checks of hydraulic and pneumatic systems
- supports PSI, BAR, MPa for flexible integration
- temperature compensation improves accuracy across environments
