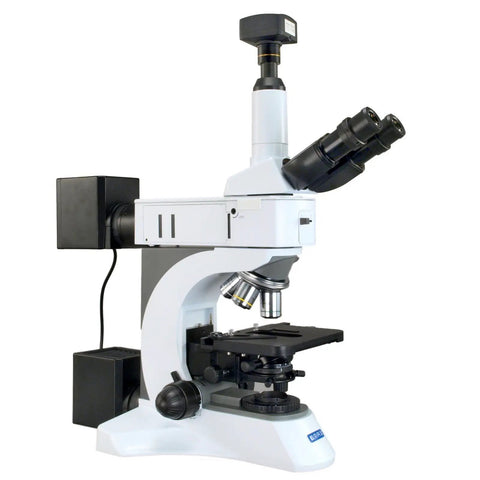

Metallurgical Infinity Polarizing Darkfield Microscope Set With EW10X 22 And EW15X Eyepieces, Plan Infinity Achromatic Objectives, Up To 1500X Total Magnification, Perfect For Metallurgical Inspection, Lab Work And Precision Observations
✔️ EW10X/22 & EW15X eyepieces included in a complete microscope set
Metallurgical polarizing microscope is a complete imaging system designed for detailed metallurgical inspection, mineral identification, crystal analysis, and precision observations in lab work. It integrates polarizing and infinity-corrected plan objectives to deliver high-contrast visuals on metal surfaces and crystal lattices.
✅ Total magnification: 50X-1500X (stepwise)✅ Eyepieces: EW10X/22 and EW15X with high eyepoint

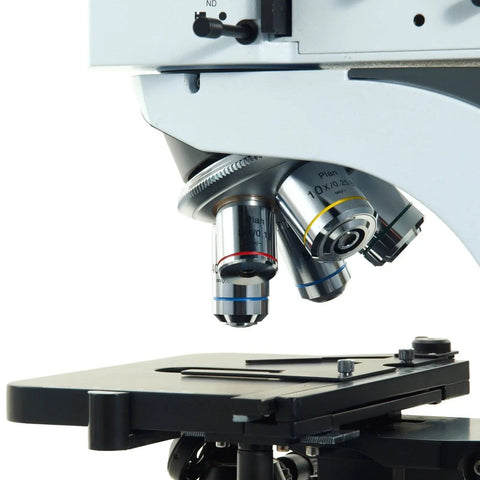

✅ Objectives: plan infinity achromatic, 5X, 10X (darkfield/brightfield), 20X, 40X, 50X, 100X dry and 100X oil
✅ Head: Siedentopf trinocular, 30°, 360° rotatable, IPD 48-75 mm, diopter on left tube
✅ Nosepiece: revolving quintuple, reversed
✅ Condenser: NA0.9/0.25 with iris diaphragm, center adjustable, top lens swing-out

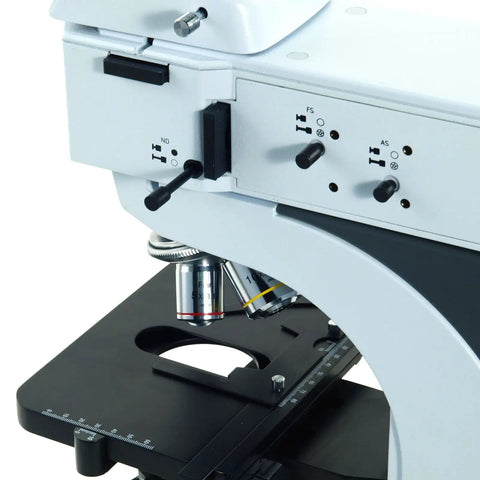

✅ Stage: double-layer mechanical, 74x50 mm travel, overall 186x138 mm
✅ Polarizing kit: polarizer and analyzer plates, 0-90° graduation on analyzer
✅ Illumination: 24V/100W halogen lamps, transmitted and reflected, adjustable, color filters
✅ Camera & accessories: 3.1 MP CCD, 2048x1536, 0.5x reducer, USB, software CD, 0.01 mm stage micrometer
✅ Power & warranty: AC 100-240V, 50/60 Hz, 5-year warranty
💡 What is a metallurgical polarizing microscope used for in metal inspection? This handy instrument helps reveal crystal structure, grain orientation, and surface features under polarized light, aiding quality control and material research. - Polarized light highlights crystal boundaries and phase contrasts - Handy for spotting inclusions, surface defects, and grain structure - Works with a digital camera for live viewing and documentation
✝️
