Metal Concealed Hinge Jig With Built In Screw Hole Guide For Precise 35mm Cabinet Door Hinge Drilling And Wider Offset From 2 To 8mm Heavy Duty Pro Grade Woodworking Door Cabinet Hinges Mounting Tool For Pros
✔️ Offset 2-8mm; built-in hinge guide; 15mm depth stop; metal

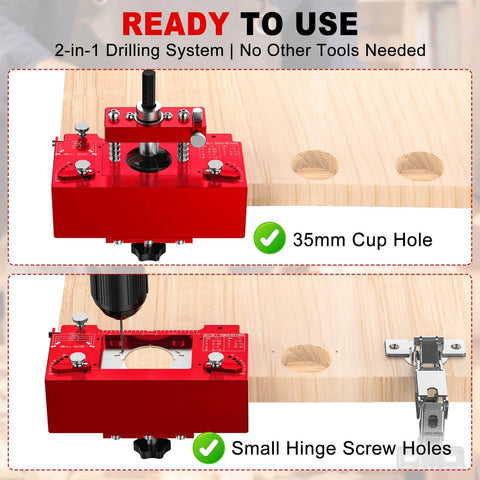

Designed as a precision drilling tool for cabinet hinges, this all-metal jig delivers accurate 35mm concealed hinge mounting on both face-frame and frameless cabinets. Its built‑in guide and robust construction reduce drift and speed up installation, making it a pro-grade choice for kitchen or bathroom cabinetry.

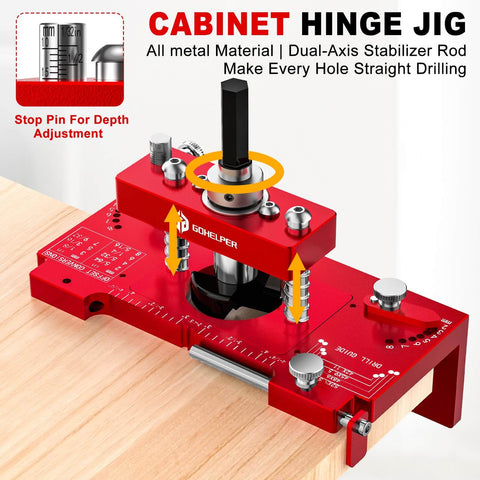

✅ All-metal body with dual-axis stabilizer for rigidity
✅ Wide 2-8mm hinge offset with three-point lock for repeatable holes

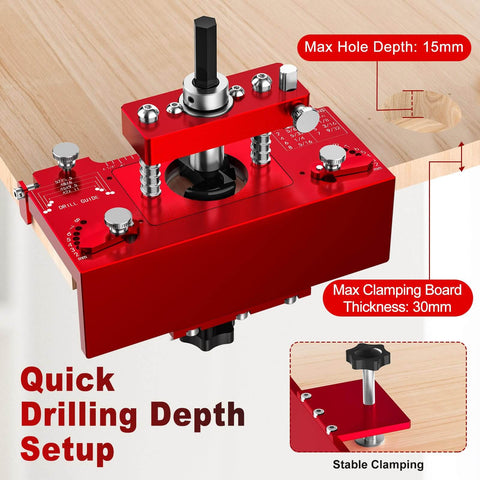

✅ Built-in 15mm depth stop and edge-adjustable guide up to 4.25 in (108 mm)

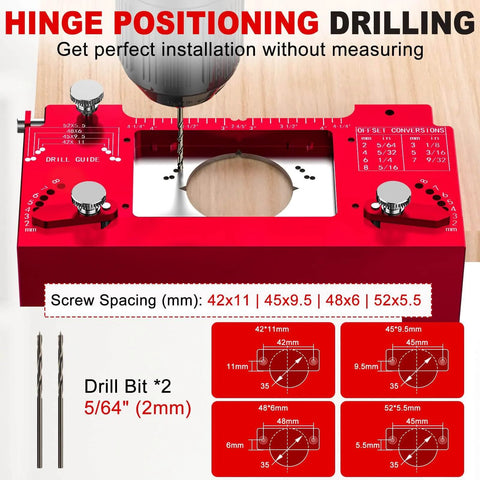

✅ Integrated hinge screw hole guide supports standard spacings: 42x11mm, 48x6mm, 52x5.5mm, 45x9.5mm
✅ Knob-operated clamp handles doors up to 30mm (1.18 in) thick

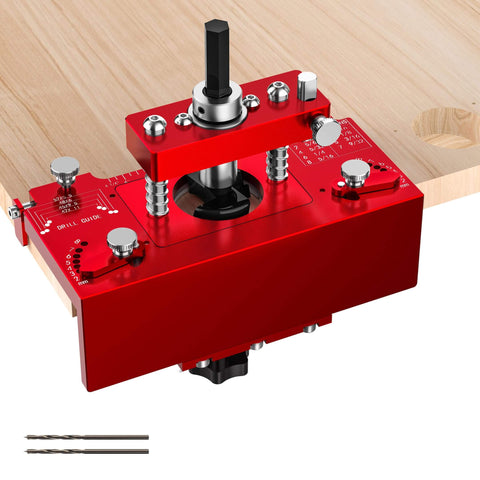

✅ Includes two 2mm drill bits for quick setup
💡 What is a 35mm concealed hinge jig used for in cabinet door installations?
It helps you place hinge holes accurately across many doors with less setup.
- Handy for accurate hinge holes across many cabinet doors
- Maintains consistent hinge spacing for clean gaps
- Works with common hinge spacings and standard drill bits
- Speeds up installs by reducing guesswork and rework
