Mega 2560 R3 Prototype Screw Terminal Shield Board Kit With Pre-Soldered Headers For Easy Wire Connections And Prototyping On Arduino Mega 2560 No Soldering Needed

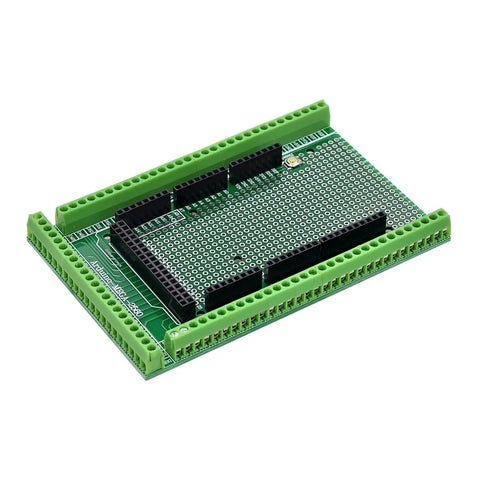

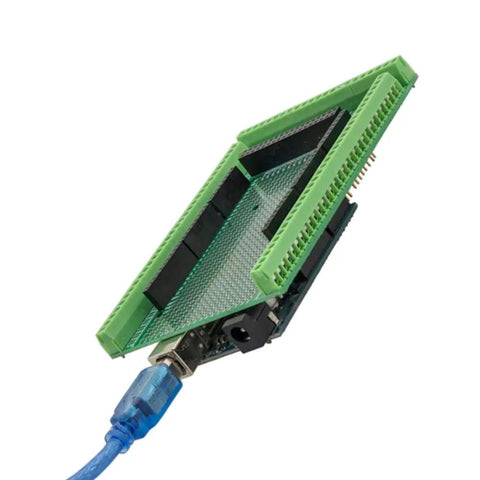

The Mega 2560 Prototype Screw Terminal Shield Board is designed to attach to Arduino Mega 2560 boards, giving you screw-terminal connectivity for external wires without soldering. It's ideal for quick prototyping and testing of electronic projects, with clearly labeled signal ports on both sides for fast wiring.

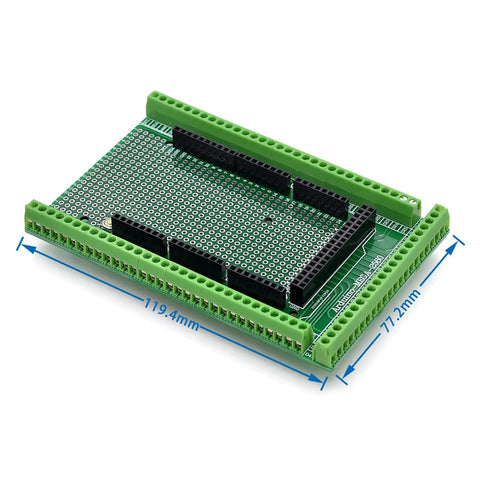

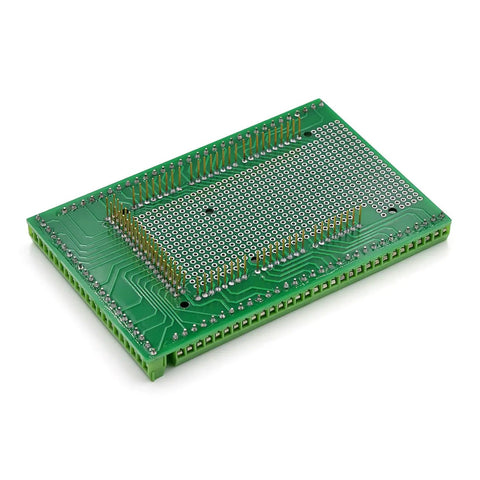

✅ PCB: FR-4 fiberglass, dual copper layers, 120mm x 78mm (4.72" x 3.07"), pads grid 2.54mm✅ Terminal Block: pitch 3.5mm (0.138"), 84 pins (3 pole x24, 2 pole x6)✅ Wire range: 26-16 AWG; strip length 5mm✅ Screws: M2 steel; Pin header and cage brass✅ Header Sockets: 1x 10-pin, 5x 8-pin, 1x 18-pin; 0.1"/2.54mm pitch✅ Package includes: 1x Pre-Assembled Mega 2560 R3 prototype screw terminal shield board kit

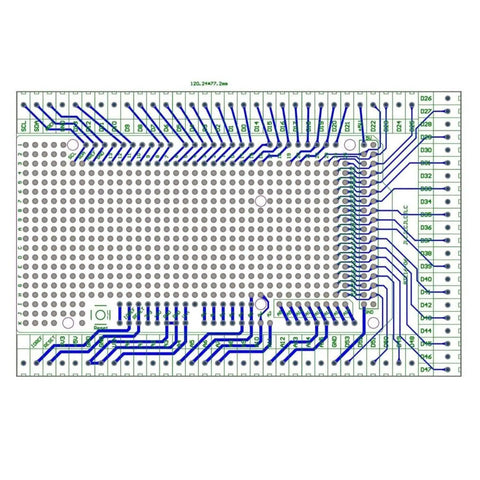

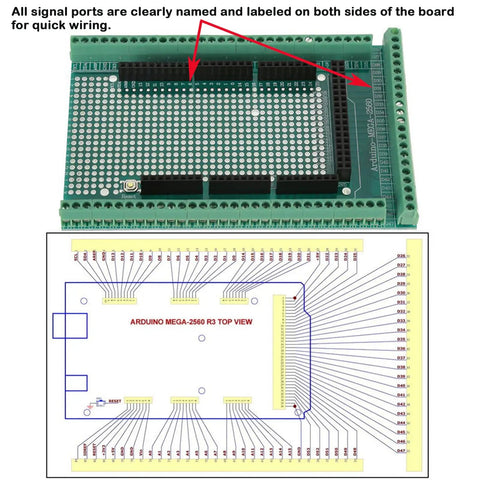

💡 What is a screw terminal shield for Arduino Mega used for in prototyping and quick wiring? A screw-terminal shield is handy for connecting external wires without soldering, making it easy to prototype and test circuits with the Mega 2560. - It provides screw-terminal blocks for secure wire connections. - It offers pre-soldered headers for quick plug-and-play installation on the Mega 2560 R3. - It labels signal ports clearly on both sides for fast wiring. - It supports 26-16 AWG wires with 5mm stripped length.
✝️
