Manual Trimming 1 Axis Linear Stage With 10 Micron Resolution For DIY Projects And Pro Grade Precision, Scaled Lifting, Smooth Linear Bearings, Ideal For Optical Instruments, Measuring Devices, Semiconductors, Microscopes And More

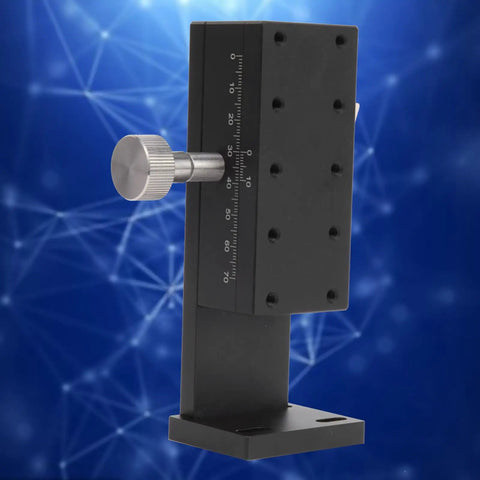

Manual 1-Axis Linear Stage with 10 Micron Resolution
✔️ Z-axis travel ±30mm, 40x90mm table, 133mm tall, 98N load

This single-axis linear stage is designed for precise motion control in optical, measuring, and semiconductor workflows. It is commonly used with optical instruments, microscopes, semiconductor equipment, measuring devices, and related equipment.

✅ Item Type: Manual Trimming
✅ Model: SPWZ40-90

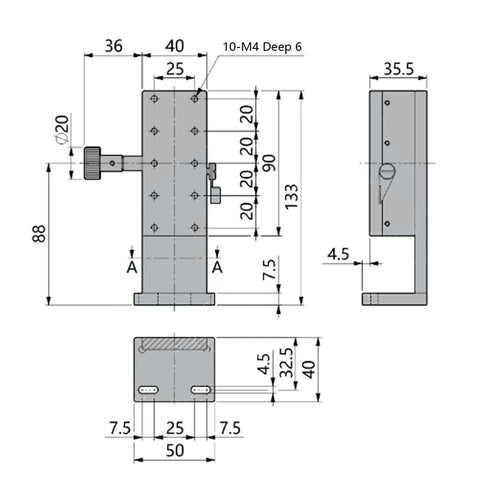

✅ Table Size: approx 40 x 90 mm / 1.6 x 3.5 in
✅ Overall Height: approx 133 mm / 5.2 in
✅ Moving Direction: Z 1 direction
✅ Body Material: Aluminum alloy (black anodized)

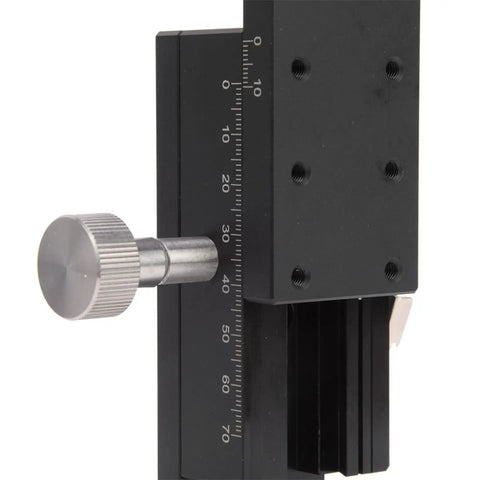

✅ Drive Method: Manually turn the knob to advance the gear drive (gear + rack)
✅ Sliding Track: Gear Rail Type: Dovetail
✅ Number Of Countertop Threaded Holes: 10
✅ Threaded Hole Diameter: approx 4 mm
✅ Threaded Hole Depth: approx 6 mm
✅ Load Resistance: 98 N (≈10 kgf)
✅ Move: ±30 mm
✅ Minimum Scale: 0.01 mm
✅ Parallelism: 0.06 mm
✅ Parallelism Of Movement: ≤0.1 mm/60 mm
✅ Scope Of Application: Optical instruments measuring devices semiconductor manufacturing equipment testing machines microscopes photographic equipment handling machines printing machines and other

💡 What is a manual trimming 1 axis linear stage used for in precision optical and measurement setups? This handy device provides precise control for alignment tasks.

- precise Z-axis motion with 0.01 mm minimum scale
- commonly used with optical instruments and measuring devices for accurate alignment
- built from aluminum alloy with dovetail rails for rigidity and long life
✝️
