Manual Sliding Table Linear Rail Guide With 9.84Inch Dual Optical Axis Easy Manual Positioning Rail For CNC Machines 66 Lb Load Capacity Aluminum Ballscrew Design Built Tough And Durable
✔️ Aluminum linear rail guide, 9.84in stroke, 66lb capacity
This manual sliding table linear rail guide is designed for precise, hands-on positioning in CNC workcells, milling rigs, and workshop fixtures. The dual optical axis design boosts accuracy and increases load stability during operation.
✅ Material: aluminum construction for durability and long life
✅ Positioning accuracy: ±0.05mm / 0.002in
✅ Effective stroke: 250mm / 9.84in
✅ Maximum horizontal load: 30kg / 66.14lb
✅ Maximum vertical load: 15kg / 33.07lb
✅ Lead: 5mm / 0.2in per turn
✅ Bearing hole diameter: 13mm / 0.51in
✅ Bearing plate height: 56mm / 2.2in
✅ Product length: 330mm / 12.99in

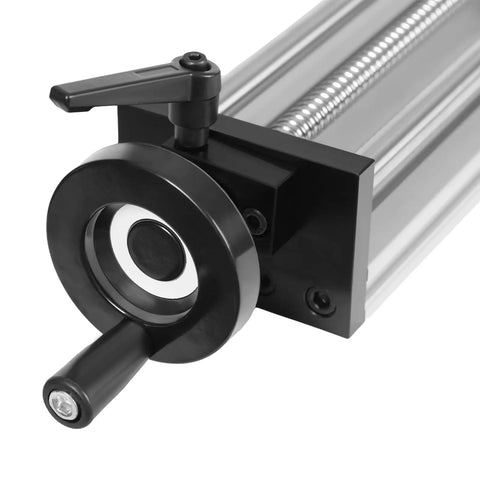

✅ Operation: manual with ergonomic handle for precise moves

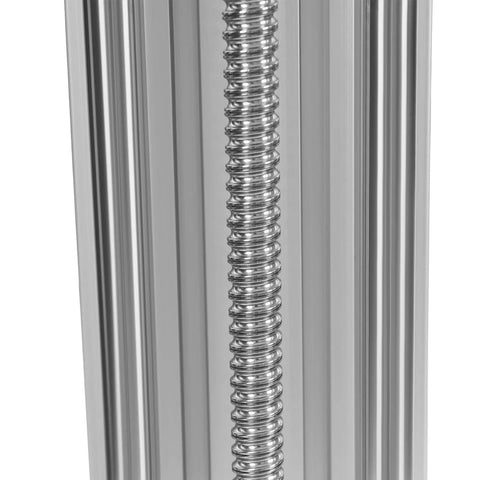

✅ Noise level: low noise due to ball screw design

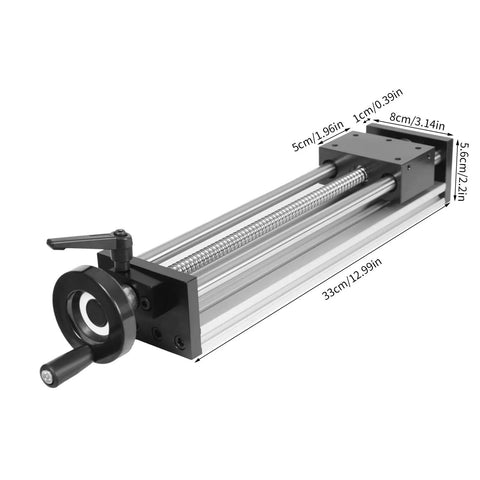

| Dimension | Value |
|---|---|
| Stroke | 250 mm / 9.84 in |
| Product length | 330 mm / 12.99 in |
| Bearing hole diameter | 13 mm / 0.51 in |
| Bearing plate height | 56 mm / 2.2 in |
| Lead | 5 mm / 0.2 in |
💡 What is a manual sliding table rail guide used for in machining and fixture setups? A handy device that helps align workpieces with straight-line motion for precise cuts and repeatable results.
- Enhances repeatable straight-line positioning for fixtures
- Handy for CNC milling setups, alignment tasks, and fixturing
- Reduces setup time with easy hand-crank control
- Supports solid load capacity for benchtop machines
