Manual Linear Stage Sliding Table With Digital Readout Z Axis T Type Screw Double Rail 12 Inch Stroke 300mm Travel Heavy Duty 220lb Load Capacity For Engineering Lab Teaching And DIY Projects

Heavy-Duty Manual Linear Stage with Digital Readout
✔️ 300mm (12") stroke, 525mm (20.7") length, single unit, 100kg max

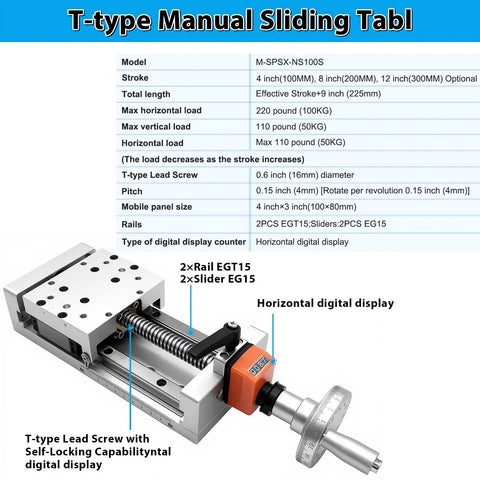

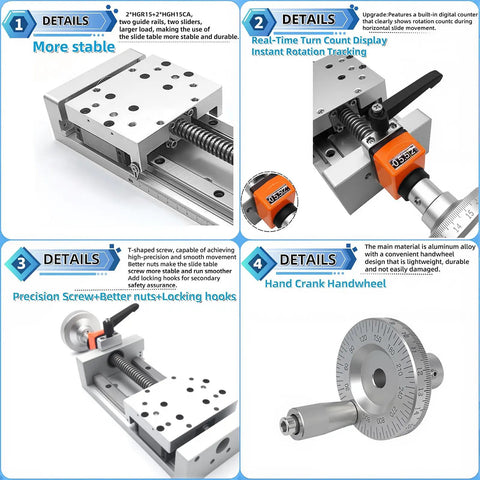

This manual linear stage is a precision positioning table used in engineering labs, classrooms, and DIY projects. It features dual rails and a 0.6 inch (16 mm) diameter T-type lead screw with a 0.15 inch (4 mm) pitch, providing smooth, controlled travel. The stainless steel body and self-locking design deliver reliability and safe stops with the built-in digital readout for quick measurement references.

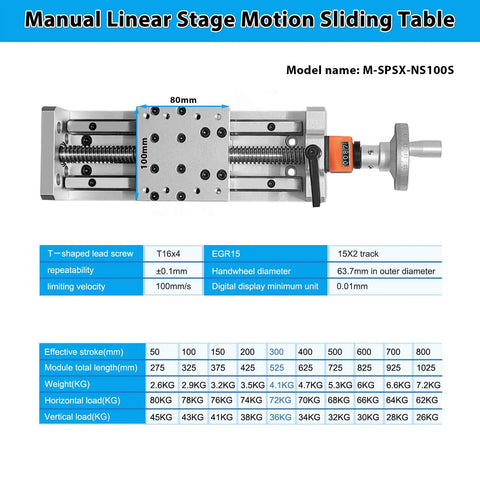

✅ Effective stroke: 300mm (12"), total length 525mm (20.7")
✅ Max horizontal load: 100kg (220 lb); max vertical load: 50kg (110 lb)
✅ Screw diameter: 16mm (0.6"); pitch: 4mm (0.15")
✅ Rails: 2x EG T15; sliders: 2x EG15; panel size 100x80mm (4x3")

💡 What is a manual linear stage with digital readout good for?

This handy device is ideal for precise alignment and repeatable positioning in engineering labs, CNC setups, and DIY projects. - Handy for accurate alignment in CNC setups and measurement tasks - Great for repeatable positioning in calibration routines - Self-locking screw and stainless steel body boost safety and durability
