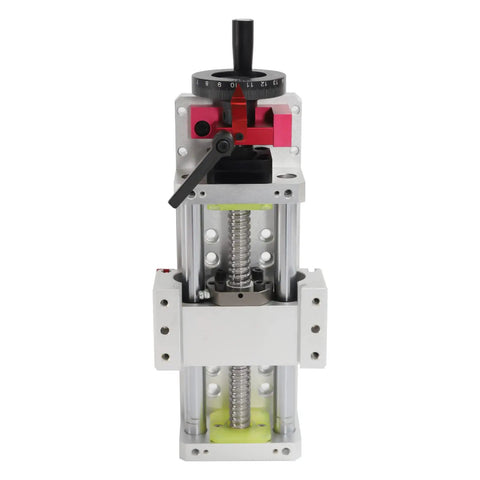

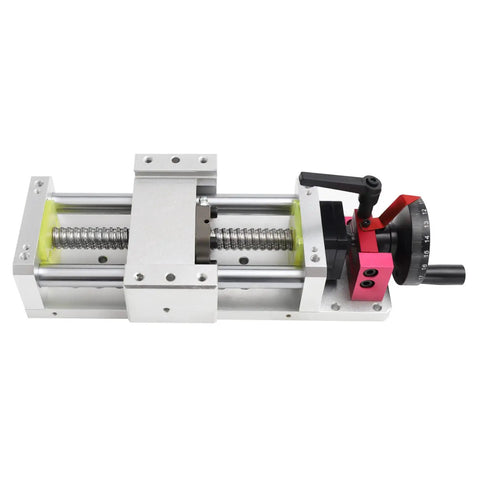

Manual Linear Stage Actuator With 100mm 1605 Ballscrew And Double Optical Axis Rail Guide For CNC Router Control, Built For Precision 0.05mm, Engraved Hand Wheel With Locking, Rock Solid Load Capacity For Heavy-Duty Projects
✔️ Single unit, ±0.05mm accuracy, double optical axis guide, 30kg load
This manual linear stage actuator is a precision motion platform designed for CNC routers, engraving machines, 3D printers, mask machines, and automation equipment.
✅ Positioning accuracy: ±0.05mm (±0.002in)
✅ Horizontal load: 30kg (66.14lbs) max; vertical load: 20kg (44.09lbs) max

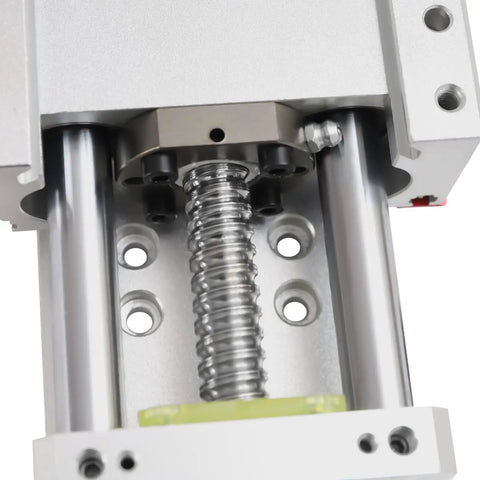

✅ 1605 ball screw with 16mm diameter and 5mm lead (16mm/0.63in; 5mm/0.197in)
✅ Double optical axis guide rail and CNC-processed precision for smooth, quiet operation
✅ Material: 606 aluminum with sandblasted oxidation finish

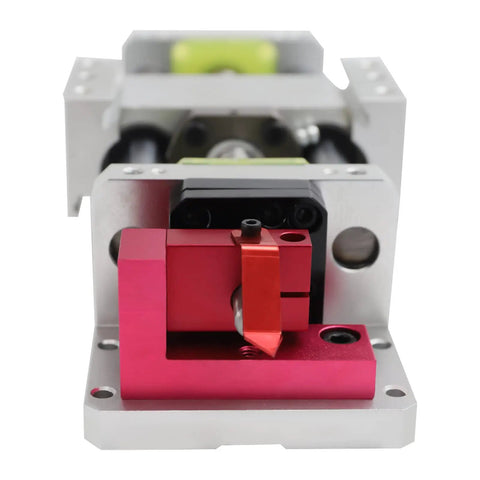

✅ Hand wheel with locking for stable control and ergonomic operation
✅ Travel: 100mm (10cm, 3.94in); bench mounting via M6 counterbore
💡 What is a manual linear stage with a 100mm travel used for in CNC machining and precision assembly?
This handy device is used to obtain accurate, repeatable alignment and controlled, linear motion for a range of machines and project setups.
- precise, repeatable motion with ±0.05mm accuracy
- heavy-load capability for stable automation
- compatibility with 100mm travel, 1605 ball screw, and double optical axis guides
- durable aluminum construction with a locking hand wheel for secure operation
