VXB
M4 9mm Length - Stainless Steel Miniature Spinning Ball Plunger Super heavy load Japan
Regular price
$14.99
|
M4 9mm Long Stainless Steel Miniature Spinning Ball Plunger Japan |

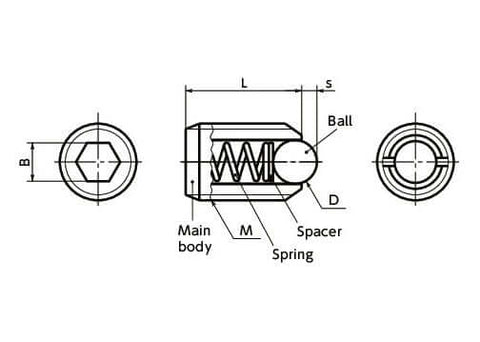

| M (Coarse) Nominal of Thread |
Pitch | s | L | D | B | Load(N) min./max. |
Mass (g) |
| M4 | 0.7 | 0.8 | 9 |
2.5 |
2 | 3.9/9.8 | 0.5 |
Material/Finish
| Main body | Equivalent to SUS304 |
| Ball | SUS440C (hardness: 55-60 HRC) |
| Spacer | SUS304 |
| Spring | SUS631J1 |
Characteristics
- There is a spacer between the ball and spring. The ball rotates.
- Made of all stainless steel. It is highly corrosion-resistant and heat-resistant.
- We also produce products of special specifications, e.g. dimensions, load and materials.
- Load type Super heavy load
- Hexagon socket part is colored for identification. Blue
