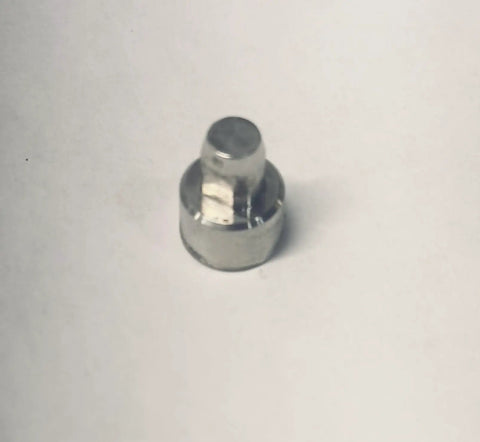

M3 Threaded Stainless Steel Guiding Pin For Precision Machining And Alignment Dowel, Heavy Duty Jig And Fixture Locator, High Strength Corrosion Resistant Tooling Pin For Fixtures
✔️ M3 threaded stainless steel guiding pin for precise alignment
The M3 Threaded Stainless Steel Guiding Pin is a precision-machined dowel used to align parts in jigs, fixtures, and precision tooling setups. This compact stainless pin delivers repeatable positioning and corrosion resistance in metalworking environments.
✅ Thread: M3 threaded design for secure fastening
✅ Material: high-grade stainless steel for corrosion resistance
✅ Finish: precision-machined for accurate alignment and repeatability
✅ Application: locating or alignment dowel pin for fixtures and jigs
💡 What is a guiding pin used for in precision jigs and fixtures?
Guiding pins locate and align parts for repeatable assemblies.
- Used to align components within fixtures and tooling setups
- Maintains tight tolerances across repeated cycles
- Made from corrosion-resistant stainless steel for durability
- Uses an M3 thread for secure mounting in compatible holes
