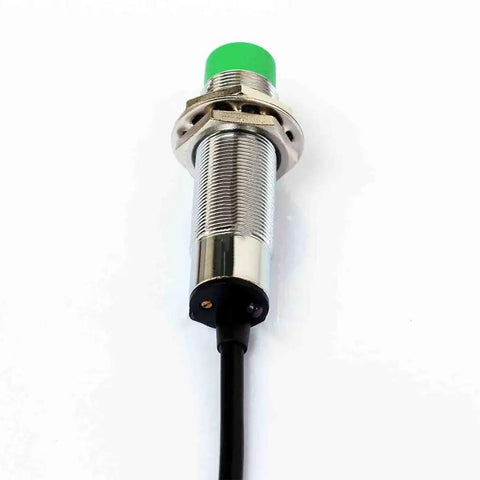

M18 Proximity Sensor Detects Metal And Non Metal Objects From Plastic Glass And Wood With 10mm Detection Range Inductive And Capacitive Sensor AC DC Two Wire Normally Closed Ideal For Automation And Hobbyist Builds
✔️ 10 mm detection range, inductive and capacitive sensing, 2-wire NC, AC/DC
The compact proximity sensor blends inductive and capacitive sensing to detect both metal and non-metal items within a tight 10 mm range. It supports DC or AC power and comes in a rugged, two-wire normally closed configuration, making it a handy fit for automation projects and hobbyist builds.
✅ Detection range: 10 mm for metal and non-metal objects
✅ Detects metal and non-metal including plastic, glass, wood
✅ Voltage options: DC 6-36V (P-P ripple ≤10%) or AC 90-250V
✅ Output: two-wire normally closed up to 300 mA (N/P) or 200 mA (D)
✅ Protection: reverse polarity, surge absorption, short-circuit protection
✅ Housing: IP67-rated brass nickel-plated body with heat-resistant ABS face
💡 What is a proximity sensor used for in automation projects? Proximity sensors detect objects without contact, handy for automation and hobby builds. - Flexible power: works on DC 6-36V or AC 90-250V - Detects metal and non-metal items like plastic, glass, wood - Two-wire normally closed output keeps wiring simple - IP67-rated housing stands up to moisture and dust
