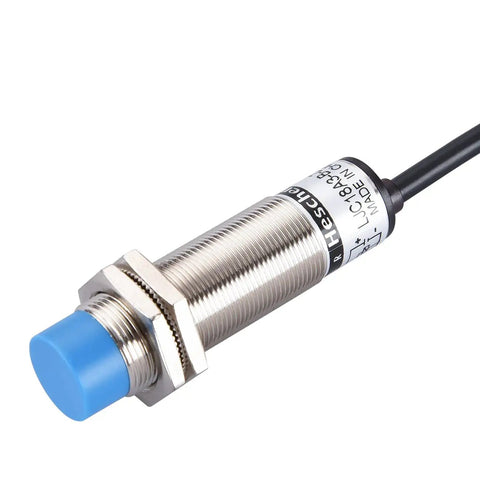

M18 Capacitive Proximity Sensor Switch Non Shield Type LJC18A3 B Z AX 10mm Sensing Range Detects Dielectric Objects 10 to 30V DC 200mA NPN Normally Closed 3 Wire With 50 Inch Cable Easy Mount And Setup

Capacitive M18 Proximity Sensor, 10mm Dielectric Detection ✔️ Sensing range 10 mm (0.39 in); NC 3-wire; 1270 mm cable; Pack 1

This compact capacitive proximity sensor detects dielectric objects without metal shielding. It’s ideal for automation on conveyors, packaging lines, and assembly stations where non-metal targets need sensing through plastics, glass, or other insulators.

✅ Mounting hole diameter: 18 mm (0.71 in)
✅ Detecting distance: 10 mm ±10% (0.39 in)

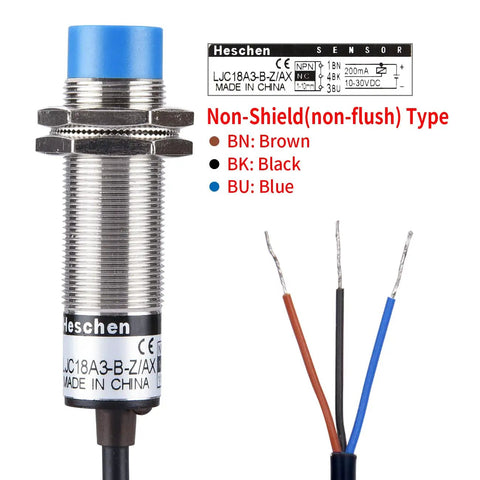

✅ Output type: NPN normally closed, 3-wire
✅ Supply voltage: 10-30 V DC
✅ Cable length: 1270 mm (50 in)
✅ Current draw: ~13 mA; output up to 200 mA
✅ Operating range: -30 to +65°C, 35-95% RH

💡 What is a capacitive proximity sensor used for in automation with dielectric targets? This handy device helps detect non-conductive objects without contact. - Detects dielectric materials through non-metal barriers - Simple 3-wire NC output makes wiring straightforward - Works on 10-30 V DC across wide temperature and humidity ranges
