M12 Capacitive Proximity Sensor Switch Non Shield Type Built Tough For Dielectric Detection Sensing Range One To Five Millimeters Operating Voltage Ten To Thirty Volts DC PNP Normally Closed Output Three Wires

Dielectric-detecting M12 Proximity Sensor with NC Output

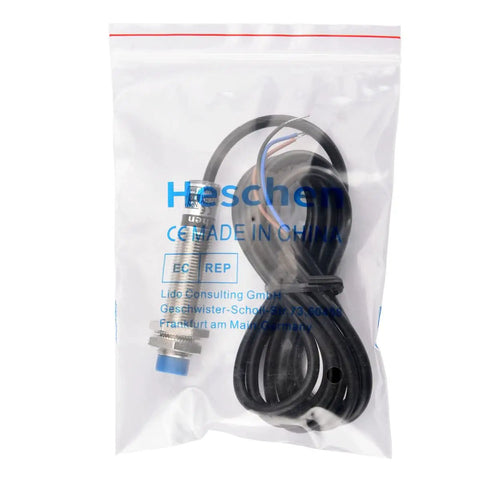

✔️ Single unit: dielectric up to 5 mm; 10-30 VDC, NC PNP, 3-wire

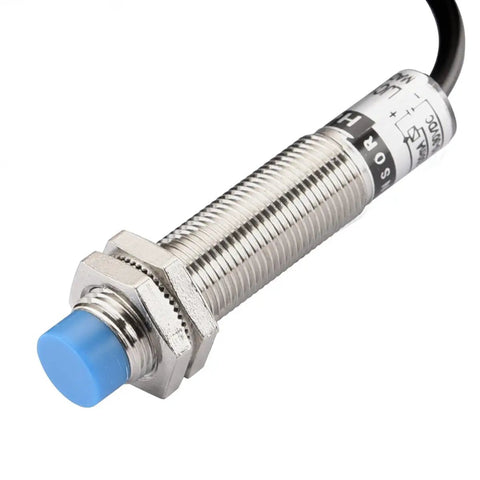

This compact M12 capacitive proximity sensor switch is a non-shield type designed to detect dielectric materials. It’s built tough for automation lines, conveyors, and packaging equipment where reliable non-metallic sensing is needed.

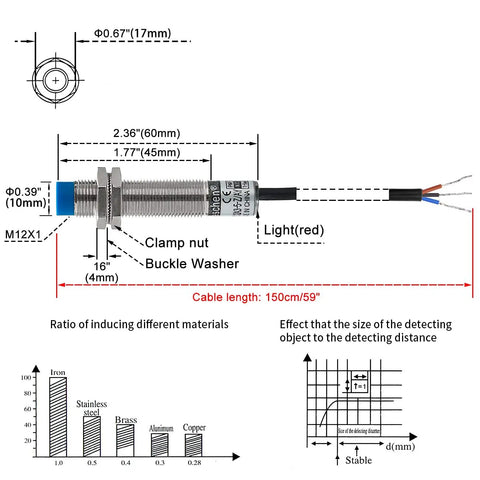

✅ Mounting hole diameter: 12 mm
✅ Detecting distance: 5 mm ±10%; set distance 0-4 mm

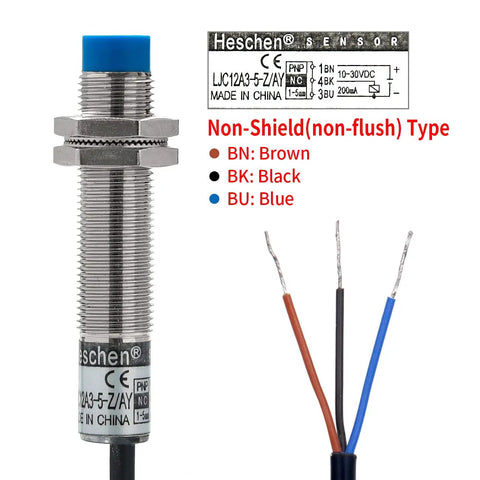

✅ Output: PNP normally closed (NC); non-shield type; 3-wire
✅ Current output: 200 mA; Working voltage: DC 10-30 V
✅ Detect object: Can detect any dielectric material
✅ Protection and safety: IP67; reverse connection protection; surge absorption; load short-circuit protection
✅ Operating/storage temp/humidity: -30 to +65°C; 35-95% RH
✅ Insulation impedance: >50 MΩ; withstand voltage 1000 V AC 50/60 Hz between charging part and shell

💡 What is a capacitive proximity sensor used for in automated dielectric detection?

Capacitive proximity sensors detect dielectric materials through capacitance changes and are handy for non-contact sensing in many setups.

• Detect plastics, glass, ceramics, and other insulators
• Operate on 10-30 VDC with NC PNP outputs
• IP67 rugged housing protects in harsh environments
• 12 mm mounting size lets you fit in tight spaces
