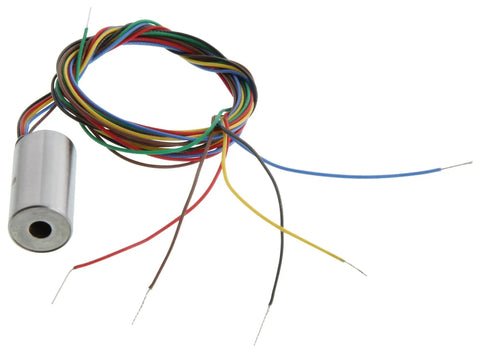

LVDT Linear Displacement Sensor MHR 025 For Precise Position Measurement, A Workhorse 3 VRMS Drive, Stroke Plus Or Minus 0.64 mm, Sensitivity 319 mV Per V Per mm, End Output 204.1 mV Per V, Nonlinearity Under 0.25 Percent, Temp Range -55 To 150 C

Single unit LVDT displacement sensor for ±0.64 mm stroke
✔️ Stroke ±0.64 mm, 3 VRMS drive, 319 mV/V/mm, -55 to 150°C

This linear displacement sensor uses a differential transformer to measure precise linear position along a travel path. It's a robust choice for precision metrology, industrial automation, CNC feedback, and scientific instrumentation where stable, repeatable readings are critical.

✅ Stroke: ±0.64 mm (±0.025 in)
✅ Drive: 3 VRMS sine wave input; 2 kHz-20 kHz range
✅ Sensitivity: 319 mV/V/mm
✅ End output: 204.1 mV/V
✅ Impedance: Pri 238 Ω / Sec 485 Ω
✅ Temperature range: -55 to 150 °C

💡 What is an LVDT displacement sensor used for?

These handy devices provide precise, repeatable position feedback in motion control and measurement tasks.

- precise linear position feedback in automation - reliable readings across wide temperature ranges - easy integration with standard driving signals 3 VRMS
