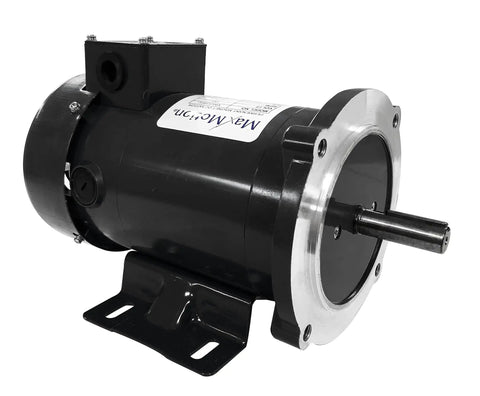

Low Voltage Permanent Magnet DC Motor For Battery Or Generator Power, 1/4 HP, 1800 RPM, 12 VDC, TEFC Enclosure, 56C Frame, NEMA C Face, 21 A, 9 In Pounds Torque, Beefy For DIY And Pro Shop Drive Projects
✔️ 1/4 HP, 1800 RPM, 12 VDC, TEFC enclosure, 56C frame, NEMA C-face, single unit
Low voltage permanent magnet DC motor designed for power from batteries or generator-supplied DC, with a rolled steel body, NEMA C-face, and removable base. This motor meets UL Recognized, CSA Certified, and RoHS standards, with IP45 protection and Class F insulation for reliable shop or field use.
✅ IP45 rating; Class F insulation
✅ UL Recognized, CSA Certified, RoHS Compliant
✅ 20:1 constant torque; linear speed/torque across range
✅ Bearings: permanently lubricated, double shielded ball bearings
✅ 12 VDC operation at 21 A; 1/4 HP, 1800 RPM
✅ 56C frame; TEFC enclosure; NEMA C-face with removable base
✅ 18-month warranty from date of fabrication
✅ Rolled steel housing; black finish
✅ 9 in-lb torque rating
💡 What is a 12V permanent magnet DC motor used for in a battery or generator power system?
These handy motors power compact drive systems in off-grid or backup setups, delivering steady torque from a simple DC source.
- low voltage 12 VDC operation from battery or generator sources- NEMA C-face, TEFC enclosure for rugged mounting
- 20:1 constant torque with linear speed/torque across range
- UL Recognized, CSA Certified, RoHS compliant
✝️
