Long Stroke Type 24 Air Brake Chamber With Welded Clevis For Semi Truck And Trailer 2.5 Inch Stroke Service Chamber Double Clamp Band Compatible TR24SC-WC Replaces Bendix K058691 Automann 179.SC24XLW225

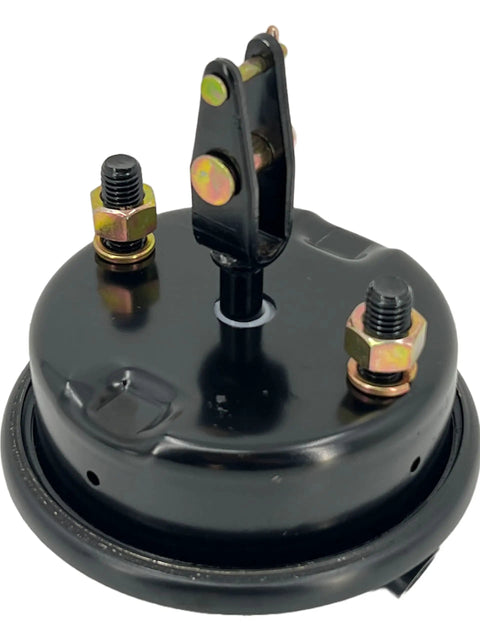

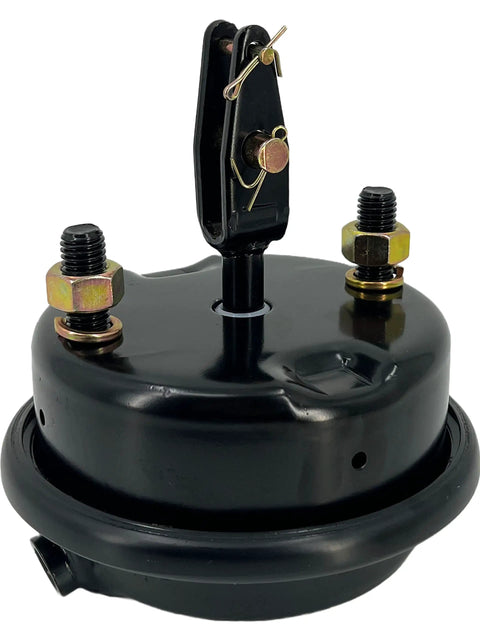

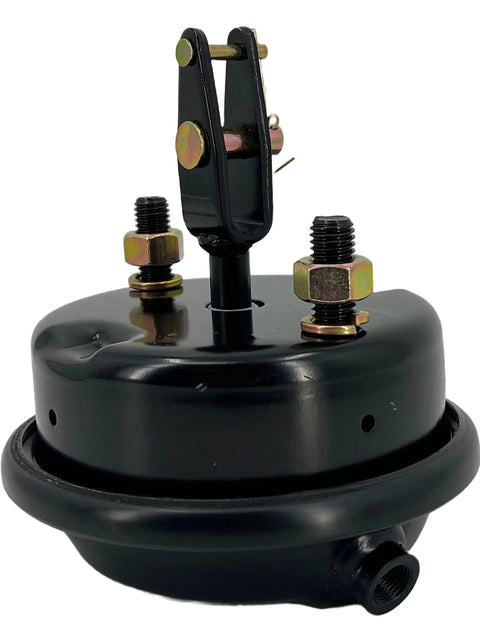

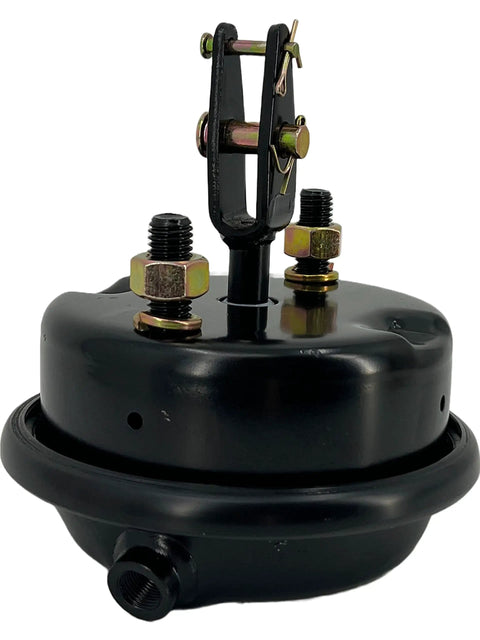

Long Stroke 24 Air Brake Chamber with Welded Clevis
✔️ Stroke 2.50 in (63.5 mm); Welded Clevis; 3/8-18 NPT ports; 1 Pack

This long-stroke service chamber is designed for semi trucks and trailers, featuring a welded clevis and double clamp band, with a steel pressure housing and corrosion-resistant powder coating. It replaces Bendix K058691 and Automann 179.SC24XLW225 and is compatible with TR24SC-WC units.

✅ Stroke: 2.50 in (63.5 mm)
✅ Mounting stud: 1.50 in (38.1 mm) length; 5/8-11 UNC-2A, spacing 4.75 in (120.7 mm)

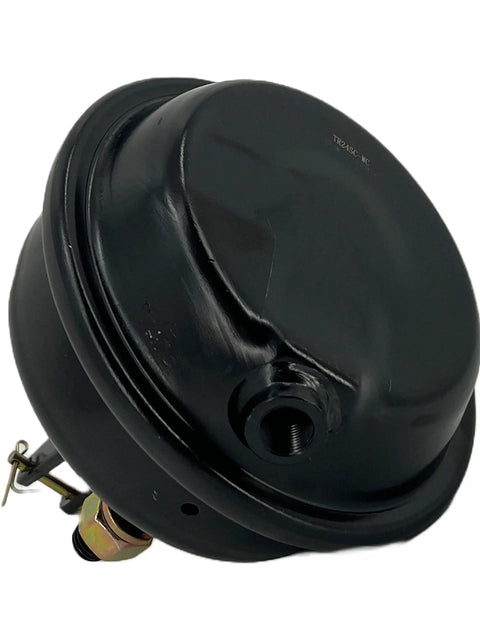

✅ Ports: Side 3/8-18 NPT; Center 3/8-18 NPT (Plugged)
✅ Pin diameters: Clevis 0.25 in (6.35 mm); Bushing 0.50 in (12.7 mm)
✅ Temperature range: -45 °F (-43 °C) to 175 °F (79 °C)
✅ Push rod to yoke center: 3.90 in (99.1 mm)
✅ Port angle: 0°
✅ Construction: Powder-coated steel housing; corrosion-resistant

💡 What is a long-stroke air brake chamber used for in heavy-duty trucking?

This handy design extends piston travel to reliably apply brakes across varying loads and temperatures.

- handy for heavy-duty trucks needing extended brake travel - can replace Bendix K058691 and fit TR24SC-WC style units - features welded clevis, double clamp band, and powder-coated housing✝️
