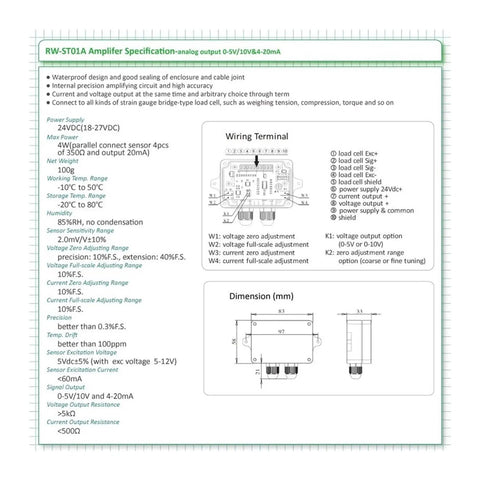

Load Cell Amplifier For Strain Gauge With Dual Signal Output 0 To 5V 0 To 10V And 4 To 20 mA Converts Sensor Output To Standard Current And Voltage And Includes Input Overload Protection And Output Short Circuit Protection

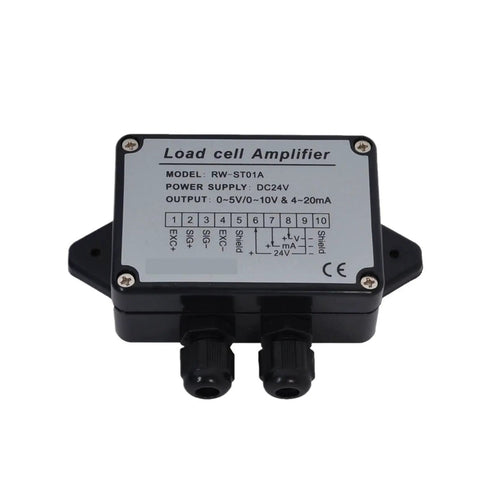

Load Cell Amplifier for Strain Gauges Dual 0-5V 0-10V 4-20mA
✔️ 24VDC power supply with 0.3% FS precision and overload protection

This load cell amplifier takes the small signal from a strain gauge and turns it into clean standard voltage or current outputs that connect straight to PLCs or control systems in factories and weighing setups.

✅ Power Supply 24VDC (18-27Vdc)
✅ Signal Output 0-5V 0-10V and 4-20mA at once
✅ Input overload and output short circuit protection
✅ Works with 2.0mV/V strain gauge load cells
✅ Waterproof enclosure 115x58x33mm weighs 100g

💡 What does a signal converter do when you need to hook sensors to industrial controls?

A load cell amplifier bridges the gap so your strain gauge talks to modern equipment without noise or errors. - Handles excitation voltage while keeping output stable across temperature swings - Lets you pick voltage or current mode right at the terminals for flexible wiring - Includes zero and span tweaks for quick field calibration on any bridge type sensor - Runs safely in damp spots thanks to sealed housing and built-in circuit safeguards✝️
