Load Cell Amplifier And Weighing Transmitter With RS485 4-20mA 0-5V 0-10V Outputs, No Fuss Modifiable LED Display, English Interface, Multi Protection Sensor Unit For Precise Weight Readings And Easy Setup

Load Cell Amplifier and Weighing Transmitter with RS485
✔️ Outputs RS485, 4-20mA, 0-5V, 0-10V; LED display ready

The Load Cell Amplifier and Weighing Transmitter is a compact sensor interface with an English display and multi protection sensor unit. It conditions signals from load cells and provides weight readings in user-friendly units for easy setup on weighing systems.

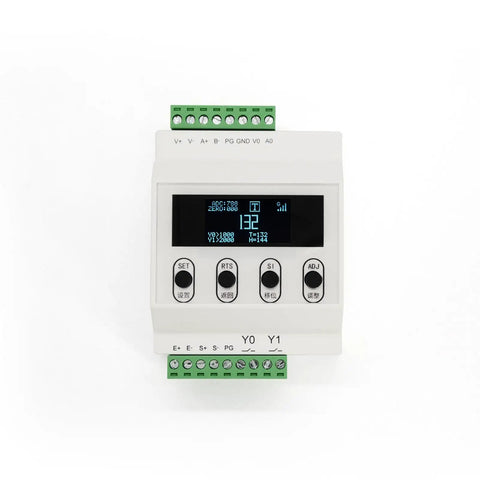

✅ Digital Display shows readings directly on LED screen

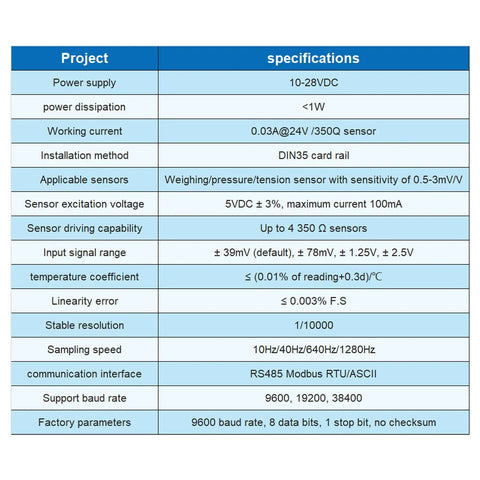

✅ Accuracy ±0.003%FS; input signal ±39mV
✅ Outputs include RS485, 4-20mA, 0-5V, 0-10V
✅ Units switchable among kg, g, ton, and newtons; online zero and capacity calibration

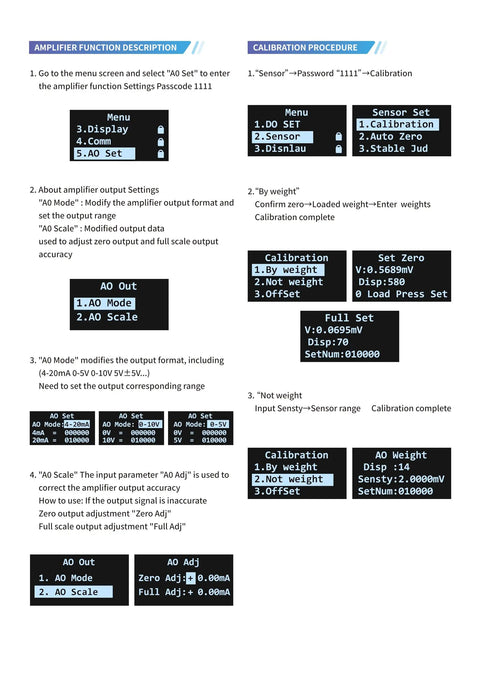

✅ Parameter settings via 4-key interface: zero, capacity, communication rate, division value, decimal digits

💡 What is a load cell amplifier used for in weight measurement systems?

This device boosts the tiny millivolt signal from a load cell to a usable, stable reading for controllers and displays. - Handy for precise weight readings in industrial setups - Supports multiple outputs such as RS485, 4-20mA, 0-5V, and 0-10V - Enables on-line zero and capacity calibration for quick setup ✝️
