VXB

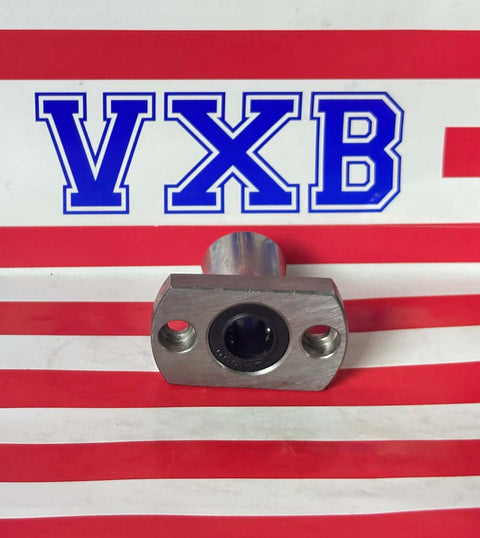

LMH10UU 10mm Flanged Ball Bushing CNC Linear Motion 10x19x29mm

$9.99
SKU: LMH10UU
UPC: 00193019295045
Item: LMH10UU
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 10mm
Outer Diameter: 19mm
Length: 29mm
LMH10UU Flanged Linear Motion
Ball Bushing 10x19x29


Number of Rolls dr D L D1 W H A d1 d2 h
4 10 19 29 40 25 6 29 4.5 7.5 4.1

LMH10UU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 10mm, outer diameter is 19mm, and length is 29mm.
  • Item: LMH10UU Ball Bushing
  • Type: Flanged Linear Motion Ball Bushing
  • Inner Diameter: 10mm
  • Outer Diameter: 19mm
  • Length: 29mm
  • Dynamic load rating: 372 N
  • Static load rating: 549 N
  • Quantity: One Bearing
