LMB243848AJ 1 1/2 inch Adjustable Linear Motion Ball Bushing

No reviews
$136.99
SKU: LMB243848AJ
UPC: 00193019129722





LMB243848AJ:Clearance Adjustable Type Ball Bushing
Made in Japan:NB Linear Systems

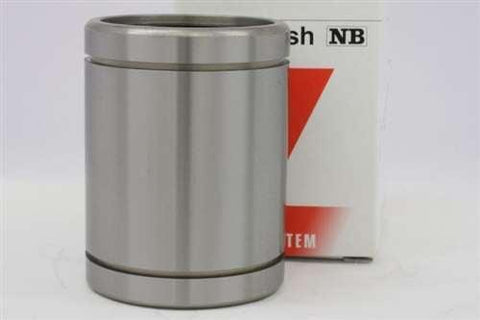

1 1/2" LMB243848AJ Clearance Adjustable Type Linear Motion Ball Bushing,1 1/2" Bore inch type linear motion ball bushing/bearing, inner diameter(bore) is 1 1/2" inch,high accuracy grade linear bushing, inch series is mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item: LMB243848AJ Ball Bearing
  • Type: Linear Motion Ball Bushing
  • Ball circuit: 6
  • Shaft Diameter: 1 1/2" inch
  • Size: 1 1/2" x 2 3/8" x 3" inch
  • Inner Diameter: 1 1/2" inch
  • Outer Diameter: 2 3/8" inch
  • Length: 3" inch
  • Dynamic load rating: 2,180 N
  • Static load rating: 4,020 N

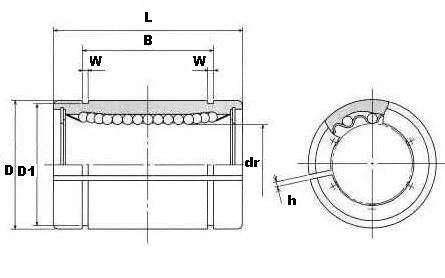

Major dimensions and tolerance (inches) Eccentricity
(inch)
Radial clearance
(inch)
dr D L B W D1 h
inch tolerance inch tolerance inch tolerance inch tolerance
1-1/2" 0-.0005 2-3/8" 0-.00075 3" 0-.012 2-13/32" 0-.012 55/64" 15/64" 0.12" .0008" 0-.0003"
