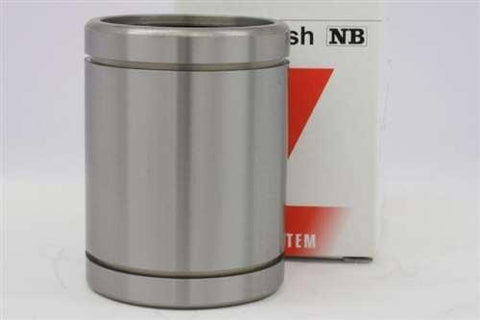

LMB162536 1 inch Linear Motion Ball Bushing

No reviews
$67.99
SKU: LMB162536
UPC: 00193019129654





LMB162536:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


 1" Bore linear motion ball bushing/bearing, inner diameter(bore)= 1" inch dimensions with steel retainer, bearing is high accuracy grade linear bushing, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • Type: NB Systems Linear Motion Ball Bushing
  • Number of ball circuits: 6
  • Size: 1" x 1 9/16" x 2 1/4" inch
  • Inner Diameter: 1" inch
  • Outer Diameter: 1 9/16" inch
  • Length: 2 1/4" inch
  • Quantity: One Bearing
  • Dynamic load rating: 980 N
  • Static load rating: 1,570 N

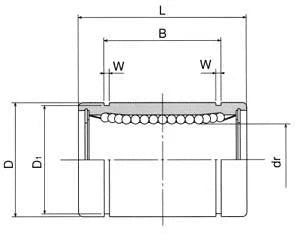

Major dimensions and tolerance (inch)
Eccentricity
Radial clearance
(inch)
dr D L B W D1 Precision
(inch)		 High
(inch)
inch tolerance inch tolerance inch tolerance inch tolerance
Precision High
1" 0-.0003 0-.0004 1-9/16" 0-.00065 2-1/4" 0-.012 1-3/4" 0-.012 0.068 1-15/32" .0004-10 .0006-15 .0002-6
