NB

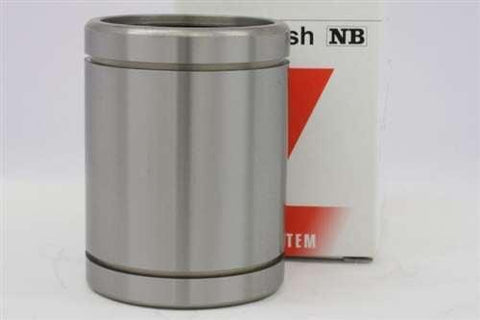

LMB101824AJ 5/8 inch Adjustable Linear Motion Ball Bushing

No reviews
$39.99
SKU: LMB101824AJ
UPC: 00193019129609





LMB101824AJ::Clearance Adjustable Type Ball Bushing
Made in Japan:NB Linear Systems

5/8" LMB101824AJ: Clearance Adjustable Type Linear Motion Ball Bushing, 5/8" Bore inch type linear motion ball bushing/bearing, inner diameter(bore) is 5/8" inch,high accuracy grade linear bushing, inch series is mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

  • Item: LMB101824AJ: Ball Bearing
  • Type: Linear Motion Ball Bushing
  • Ball circuit: 6
  • Shaft Diameter: 5/8" inch
  • Size: 1/2" x 7/8" x 1 1/4" inch
  • Inner Diameter: 1/2" inch
  • Outer Diameter: 7/8" inch
  • Length: 1 1/4" inch
  • Dynamic load rating: 774 N
  • Static load rating: 1,180 N

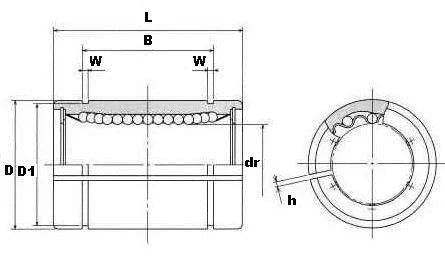

Major dimensions and tolerance (inches) Eccentricity
(inch)
Radial clearance
(inch)
dr D L B W D1 h
inch tolerance inch tolerance inch tolerance inch tolerance
5/8" 0-.0004 1-1/4" 0-.0005 1-1/2" 0-.008 1.1039" 0-.008 0.056" 1.059" .06" .0005 -.0001
