Lit Tiny M10SD 10Hz FPV GPS Compass Module For RC Drones Ultra Lightweight 18mm Square 4.8g UBX M10 GNSS Chip With Builtin QMC5883 Compass Supports GPS GLONASS Galileo BeiDou 115200 Baud Rate Ideal For FPV UAVs

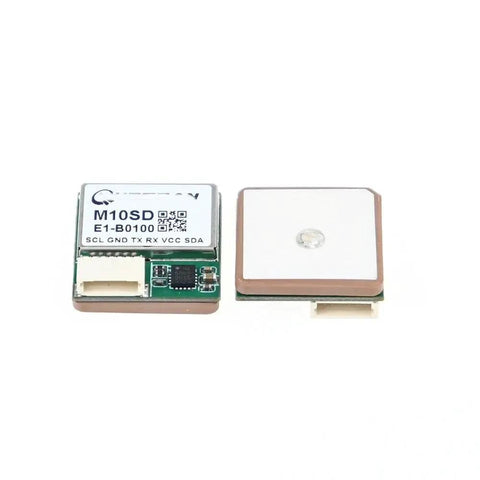

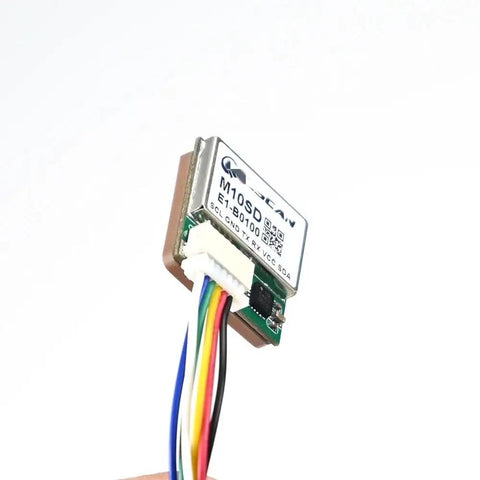

✔️ Single Unit, 18x18x5 mm, 4.8 g, UBX M10 GNSS with QMC5883 compass
The M10SD GPS compass module is a compact navigation unit designed for FPV drones and other RC platforms. It combines UBX M10 GNSS with a built-in QMC5883 compass to deliver reliable positioning in tight airframes and remote environments.

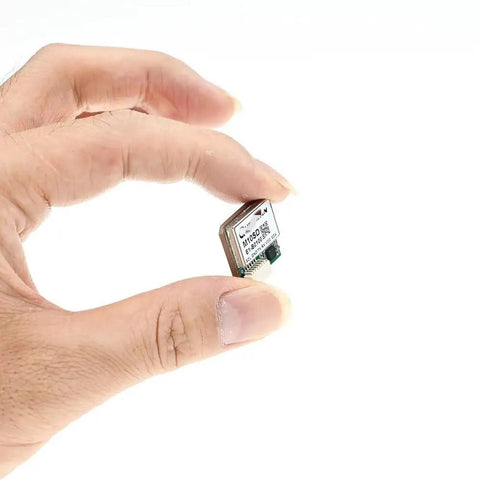

✅ 18mm x 18mm x 5mm footprint and 4.8 g weight for ultra-lightweight FPV integration
✅ UBX M10 GNSS core with GPS/GLONASS/Galileo/BeiDou support and 10 Hz updates
✅ Built-in QMC5883 compass for heading data and easier FC integration
✅ 115200 baud rate for fast data transmission to flight controllers
✅ Low power consumption in continuous tracking mode for longer flight times
✅ Suitable for FPV UAVs, RC boats, and planes
💡 What is a GPS compass module used for in FPV drone flight control and navigation?
This handy device provides accurate position and heading data to flight controllers for stable takeoffs, precise waypoint navigation, and reliable return-to-home functionality.
- Real-time GNSS position updates support smooth path tracking
- Heading data from the built-in QMC5883 compass enhances yaw control
- Multi-constellation coverage improves reception in challenging environments
