Liquid Flow Meter Workhorse With Tuf-2000b And TM-1 Sensor, DN20-DN700mm Range, IP67 Waterproof For Water Sea Water Sewage Oil And Alcohol, Includes 4-20mA Output, OCT Pulse Output, Relay Output, PT100 Input Support, Pro Grade
This pro-grade liquid flow meter combines a TUF-2000B host with the TM-1 ultrasonic transducer to measure flow in pipes from DN50 to DN700 mm. Designed for water, seawater, sewage, oil, and alcohol, it performs reliably in harsh environments thanks to IP67 waterproofing. Ideal for industrial pipelines, seawater intakes, wastewater treatment, and process lines where accurate flow data is essential.
✅ Accuracy: ≤1%
✅ Velocity range: 0~±10 m/s; bi-directional
✅ Pipe size: DN50-DN700 mm (1.97-27.56 in)
✅ Liquid types: water, sea water, sewage, oil, alcohol
✅ Interfaces: RS485 (MODBUS); optional SD card storage
✅ Outputs: 4-20 mA, OCT pulse, relay
✅ Power: DC8-36 V or AC85-264 V
✅ Installation: wall or DIN rail mounting

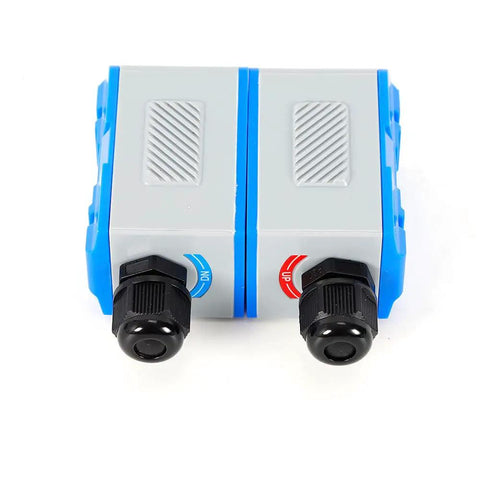

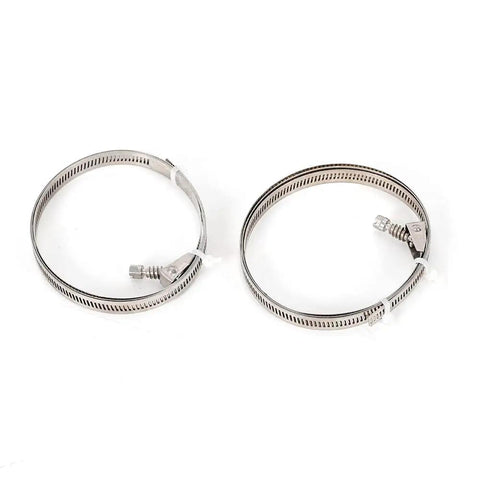

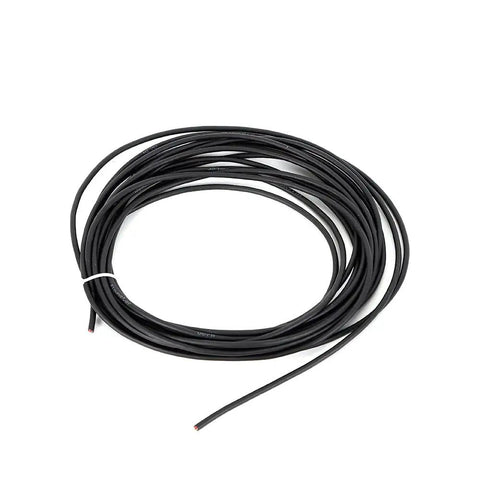

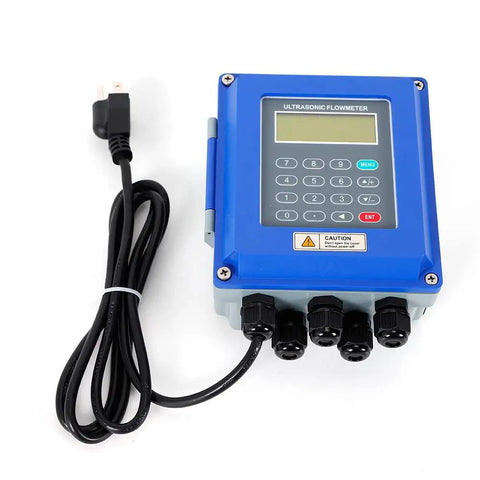

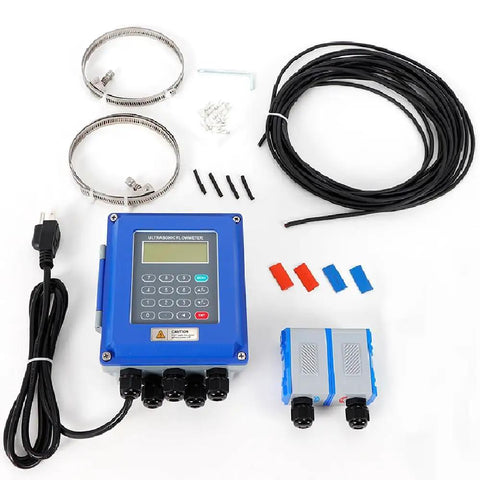

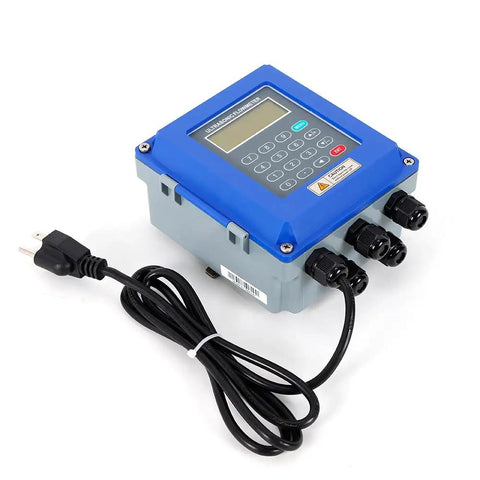

The device ships as a complete package that includes the TUF-2000B host, steel belt, TM-1 ultrasonic transducer, and two 5-meter flow signal cables. It supports robust outdoor and indoor installations and offers multiple signal interfaces to fit into existing control networks.
