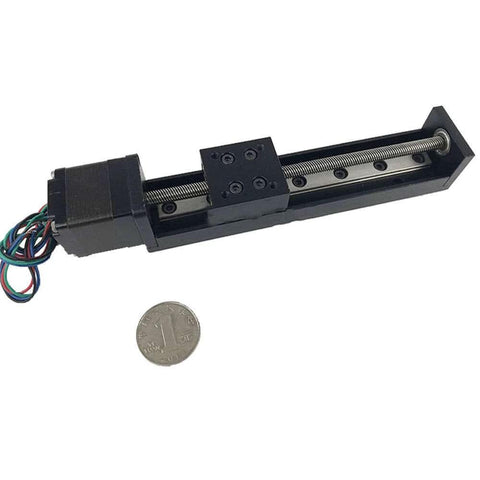

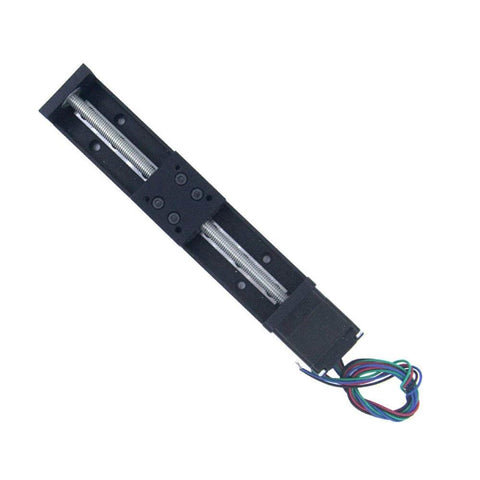

Linear Rail 50mm Linear Stage Actuator with Square Linear Rails Mini Slide Table + NEMA 11 Stepper Motor for DIY CNC Router Milling Machine (50mm)

50mm Linear Stage Actuator with Square Rails Mini Slide Table and NEMA 11 Stepper Motor for DIY CNC Router Milling Machine (50mm Travel)

✔️ Handy compact 50 mm travel linear stage with square rails and NEMA 11 motor for precise DIY CNC routing and milling projects

This compact linear rail stage is designed for hobby CNC routers, milling machines, laser cutters, and automation projects. It combines a lightweight aluminum alloy body with stainless steel components to deliver smooth motion, high precision, and long life in a handy, space-saving package. Pack size: 1 piece. Includes 1 x T0601-50 stroke slide table (including motor).

✅ Travel length: 50 mm (2.0 in)
✅ Maximum load: 3 kg; vertical load: 1 kg
✅ Screw specification: T6*1 (diameter 6 mm, pitch 1 mm); other options T6*2, T6*4, T6*6, T6*12 available on request
✅ Motor: NEMA 11 stepper motor, 24 V, 0.6 A, 0.07 Nm, 1.8° step, size 28x28x30 mm
✅ Speed: fastest speed 40 mm/s
✅ Material: aluminum alloy and stainless steel
✅ Package includes: 1 x T0601-50 stroke slide table (including motor)
✅ Multi-axis compatibility: supports horizontal fold, Longmen, and can be integrated into 3 or 4 axis setups
✅ Applications: ideal for hobby CNC routers, small milling machines, and DIY automation projects

This handy stage offers a compact, reliable motion solution for precise operations, helping you achieve better alignment and smoother cuts in small-scale milling and engraving tasks.

💡 What is a 50 mm travel linear stage used for in DIY CNC routers and milling machines?

This motion unit provides precise, repeatable travel in tight spaces for hobby and light professional automation.

✅ Precise motion control in small travel applications
✅ Compact fit for two- to four-axis DIY configurations
✅ Compatibility with standard stepper motor drivers for easy integration
✅ Improves repeatability and surface finish in milling and engraving tasks
