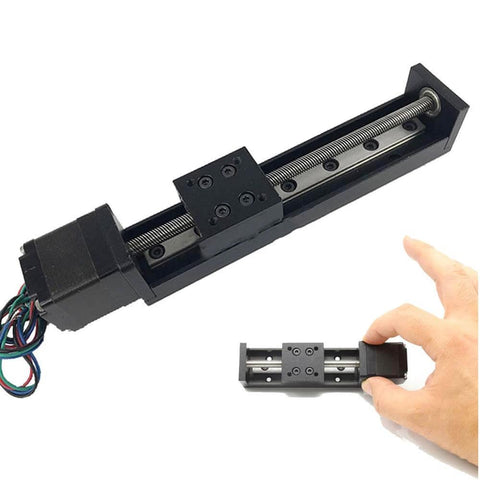

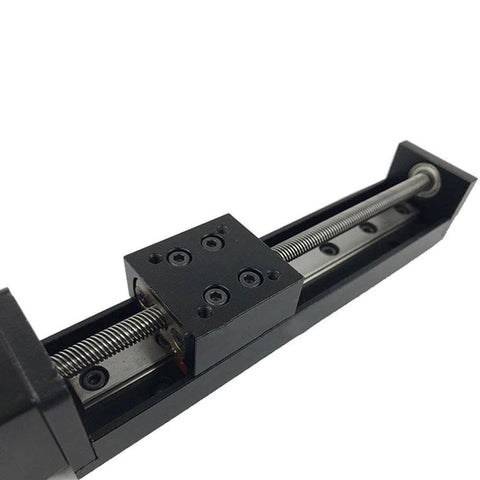

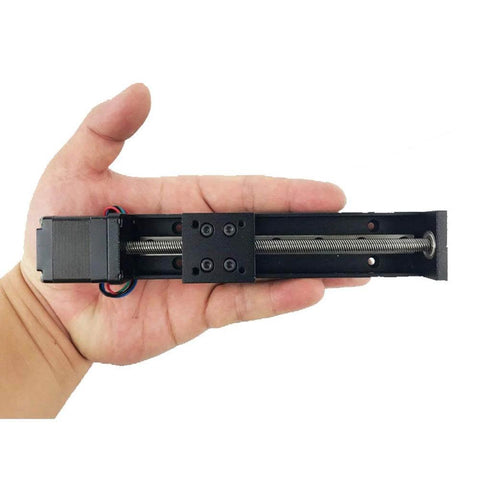

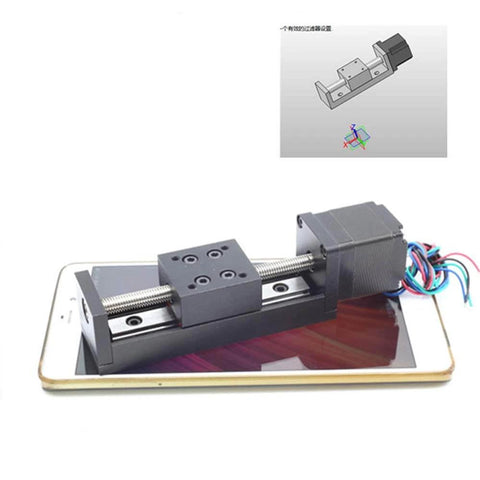

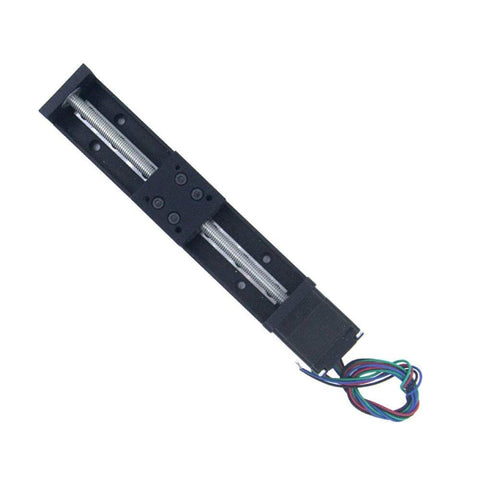

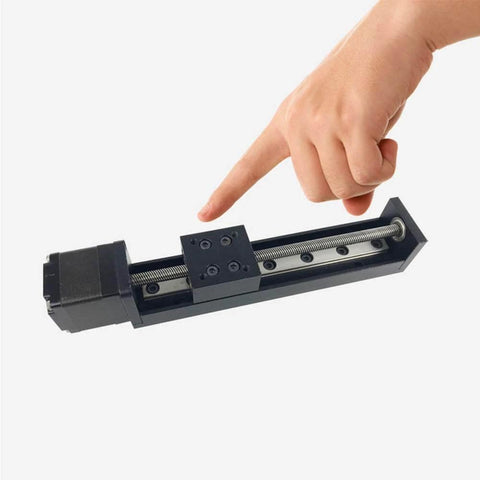

Linear Rail 100mm Linear Stage Actuator with Square Linear Rails Mini Slide Table + NEMA 11 Stepper Motor for DIY CNC Router Milling Machine (100mm)

100mm Linear Rail Stage with NEMA 11 Stepper Motor for DIY CNC Router Milling Machine - Compact 100 mm Travel Mini Slide Table (Single Unit)

✔️ Compact 100 mm travel linear stage with square rails and included NEMA 11 stepper motor for DIY CNC routers (single unit)

This 100 mm travel linear rail stage is a compact, ready-to-use motion platform designed for DIY CNC routers, milling machines, laser cutters, and other small automation projects. Built from aluminum alloy and stainless steel, it delivers smooth movement, solid load handling, and simple integration into desktop or benchtop setups. Pack: 1 unit.

✅ Travel length: 100 mm (3.94 in)
✅ Maximum load: 3 kg horizontal, 1 kg vertical
✅ Motor: NEMA 11 stepper motor, 24 V, 0.6 A, torque 0.07 N m, step angle 1.8°
✅ Travel accuracy and screw: T6*1 (6 mm diameter, 1 mm pitch); 0.1 mm precision
✅ Screw options: T6*2, T6*4, T6*6, T6*12 available on request
✅ Material: aluminum alloy and stainless steel
✅ Fastest speed: up to 40 mm/s

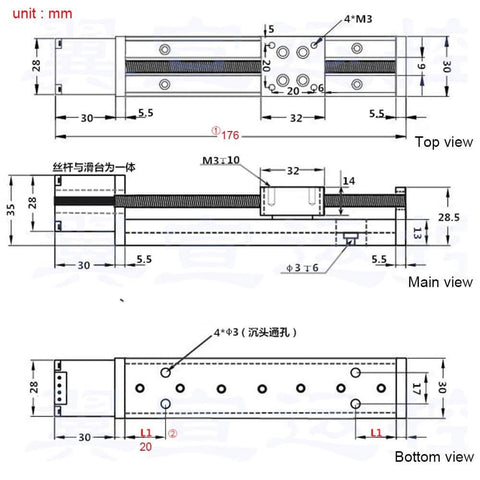

✅ Motor size: 28 × 28 × 30 mm (1.10 × 1.10 × 1.18 in)
✅ Configurations: can be mounted for horizontal cross, gantry style, 3-axis and 4-axis setups
✅ Includes: 1 x T0601-100 stroke slide table (including motor)

💡 what is a long-tail keyword question about a 100 mm linear rail stage with an integrated motor for small DIY CNC machines?

A linear rail stage provides precise, smooth motion for compact automation tasks.

• It enables precise X, Y, or Z axis movement in tight spaces
• It reduces friction and wear with quality aluminum and stainless steel construction
• It includes a built-in 24 V NEMA 11 motor for simpler wiring and control
• It fits desktop CNC routers, milling machines, laser engravers, and other small automation projects

Use this compact motion platform to achieve precise, repeatable results in small-scale CNC and automation tasks.
