Lidar Sensor Scanner For 0 To 4m ToF Ranging Module For Drones And Robot Rigs With Raspberry Pi And Arduino Compatibility Splashproof Radar High Precision Obstacle Avoidance And Compact Design

Compact 0-4m ToF Lidar Sensor (1 PCS) for Drones and Robots

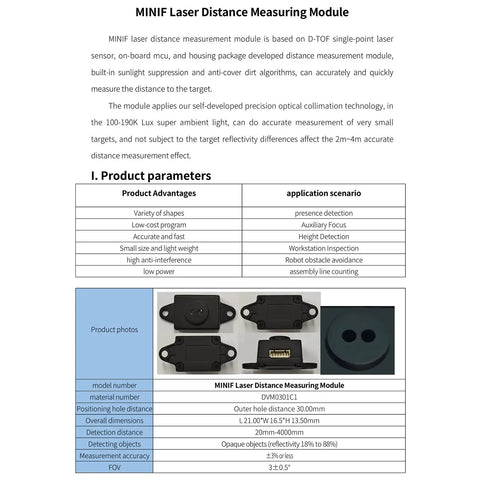

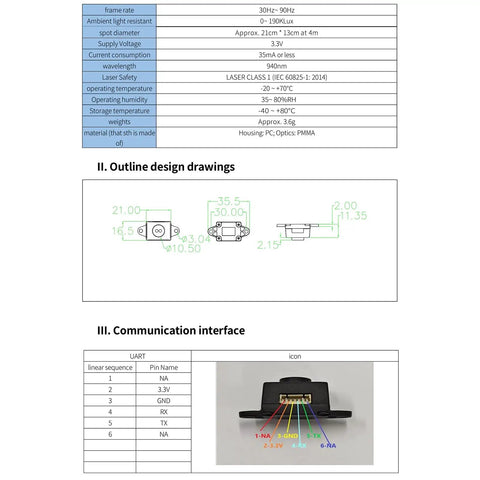

✔️ Range 20-4000 mm, ±3% accuracy, 21 16.5 13.5 mm, 3.6 g

The compact ToF lidar ranging module is built for drones and robot rigs. It delivers precise distance measurements and easy Raspberry Pi and Arduino integration, enabling obstacle avoidance and mapping in compact projects.

✅ Range 20-4000 mm
✅ Accuracy ±3% across full range
✅ FOV 3 ±0.5°
✅ Frame rate 30-90 Hz adjustable
✅ Weight 3.6 g
✅ Size 21.0×16.5×13.5 mm
✅ Operating temp -20°C to +70°C
✅ Humidity 35% to 80% RH
✅ Communication UART 115200 baud
✅ Laser safety Class 1 IEC 60825-1:2014

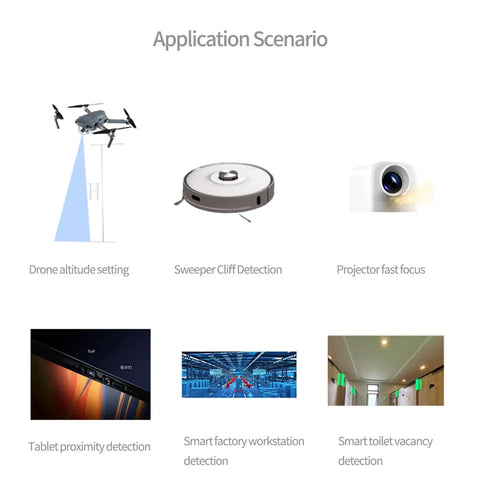

💡 What is a lidar distance sensor used for in robotics and drones?

It's handy for obstacle detection, mapping, and safe autonomous operation.

- Accurate distance sensing from 20 mm to 4000 mm enables reliable avoidance
- Easy integration with Raspberry Pi/Arduino via UART 115200 baud
- Lightweight, compact form fits on small drones and robot rigs
- Sunlight suppression helps maintain readings in bright conditions
