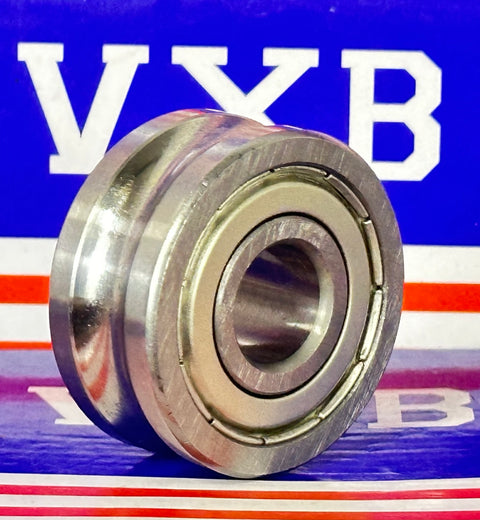

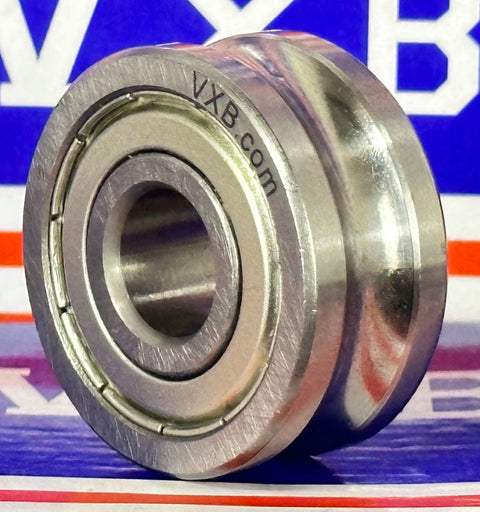

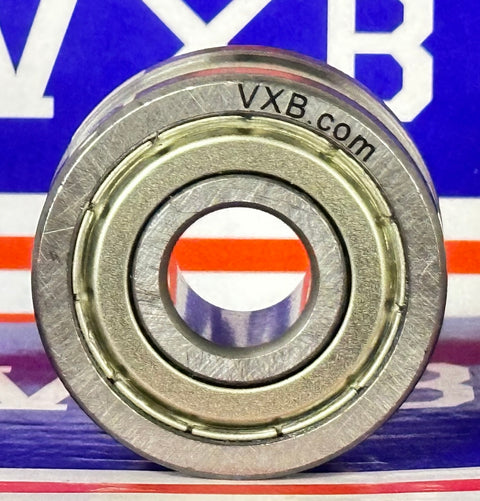

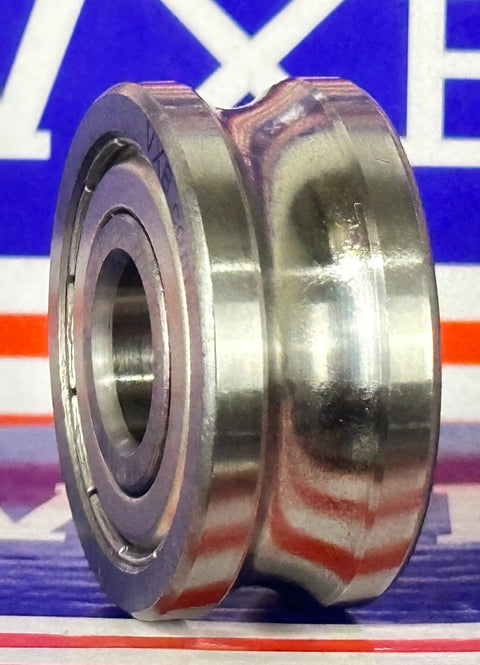

LFR5201-10KDD 12mm ID x 10mm U-Groove Track Roller Bearing
LFR5201-10KDD U-Groove Track Roller Bearing
12mm ID x 35mm OD x 15.9mm Width - U-Groove Guide Roller
The LFR5201-10KDD is a U-groove track roller bearing designed for use in linear motion systems, guide rails, and track rollers where quiet, smooth, and durable tracking is essential.
✅ Item: LFR5201-10KDD Bearing
✅ Type: U-Groove Track Roller Bearing
✅ Quantity: One Bearing
✅ Inner Diameter (dw): 12mm
✅ Outer Diameter (D): 35.0mm
✅ Width (C/B): 15.9mm
✅ Groove Width (A): 20.65mm
✅ Groove Radius (rs): 0.3mm
✅ Load Rating Dynamic (Cw): 8.5 kN
✅ Load Rating Static (Cow): 5.1 kN

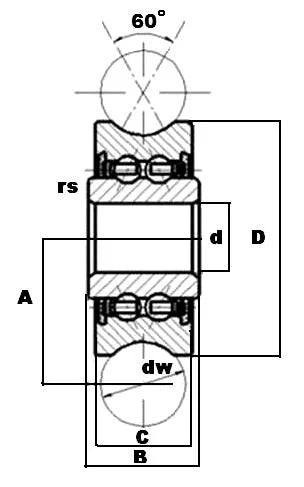

| dw | d | D | C | B | A | rs |
| 10 | 12 | 35.0 | 15.9 | 15.9 | 20.65 | 0.3 |
💡 Why choose U-groove track bearings for linear guidance?
U-groove track bearings offer precise tracking on round rails or angle iron, reducing lateral drift and enabling stable guidance in automated systems, 3D printers, and CNC machines.
