LEMS-3-8-BK-CBK 8mm Plastic Clamp Lever - Male Screw - with Push Button
Title
$26.99
SKU: LEMS-3-8-BK-CBK
Item: LEMS-3-8-BK-CBK Plastic Clamp Lever
Male Screw Type with Push Button
8mm Screw
Thread M3
Stainless Steel Thread Section
Male Screw Type with Push Button
8mm Screw
Thread M3
Stainless Steel Thread Section
LEMS-3-8-BK-CBK 8mm Plastic Clamp Lever - Male Screw - with Push Button |
An 8mm male screw type plastic clamp lever with push button.When the lever is pulled to adjustment position, the push button assists in transmitting the force, assisting the operation. Stainless steel threading.

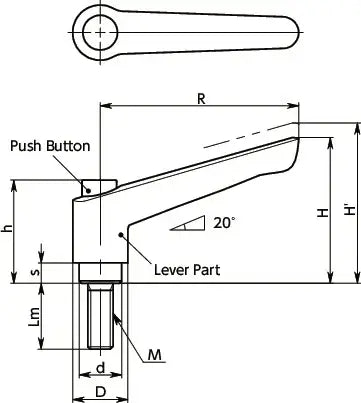

Part Number | M | Lm | R | H | H1 | h | s | D | d | Tooth No. | Max Load (N) | Max Tightening Force (kN) |
LEMS-3-8-BK-CBK | 3 | 8 | 45 | 35.5 | 39 | 24 | 4.2 | 13 | 10 | 18 | 9 | 0.95 |
