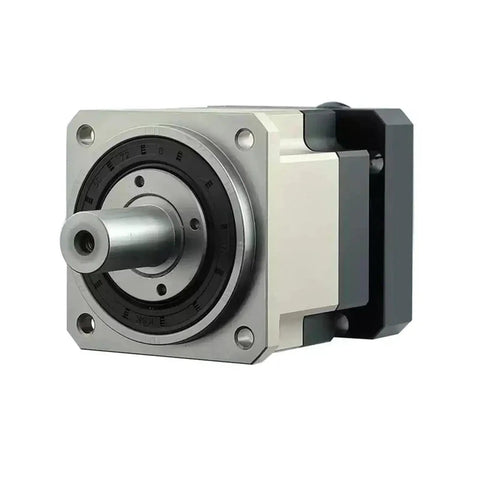

Legit Helical Gear Reducer Box For Nema 17 23 34 Steppers Pumps Out Serious Torque With 5 To 1 Speed Ratio And 35 Mm Input Shaft Secure Mount For 40 To 180 Mm Flange Servo Motors On Your Shop Build

5:1 Helical Gear Reducer Increases Output Torque

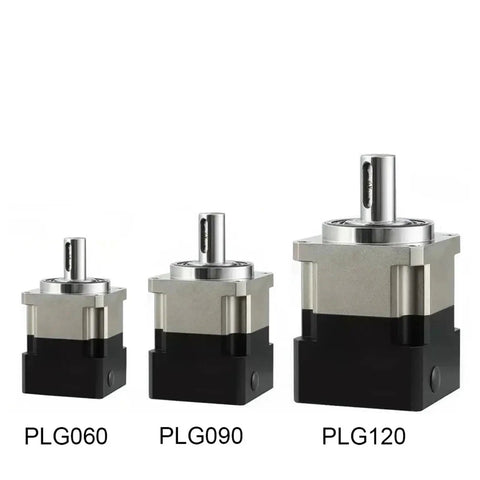

✔️ PLG180 Design 35mm Drive Fits Nema 17 23 34 Units

This single pack helical gear reducer box acts as a heavy duty speed multiplier that hooks straight onto your existing motor setup to boost pulling power without overdriving the electronics. You typically mount it between stepper units and linear guide rails to crank up rotation strength while keeping RPM steady during demanding cuts or precise positioning trades. Fabricators and weekend builders stash these handy gearboxes directly onto forty through one hundred eighty millimeter servo flanges to anchor milling heads fluid pump drives or conveyor drums that need reliable grip. The internal helical teeth mesh quietly to spread load across multiple contact points which keeps vibration down and extends service life compared to cheaper spur designs. Just wire the matching shaft to your controller board and watch torque jump five times higher while output speed drops to exactly where your project demands solid control.

✅ 5:1 reduction ratio multiplies input torque for heavy lifting tasks
✅ PLG180 aluminum alloy housing resists warping under continuous load
✅ 35 millimeter cylindrical input shaft fits Nema 17 23 and 34 frames
✅ Compatible mounting face supports forty one hundred eighteen and 180mm servo flanges
✅ Straight toothed gearing delivers smooth acceleration with minimal backlash
✅ Single unit pack ships ready to bolt without extra adapters or fasteners

💡 What advantages does a helical reduction gearbox offer for CNC stepper upgrades?
Picking the right gear ratio gives small controllers enough pulling power to handle demanding passes without overheating.
- Angled cut teeth distribute cutting pressure evenly along multiple gear faces to stop early pitting and extend component lifespan
- Dropping rotational speed by five to one multiplies static holding torque exactly where linear rails and spindle mounts demand steady force
- Matching the input diameter to standard Nema frame sizes keeps fabrication costs down since swap out parts fit existing Vesa compatible brackets
- Heavy duty aluminum housings shed heat faster than plastic alternatives so you can run longer print cycles without thermal throttling warnings
