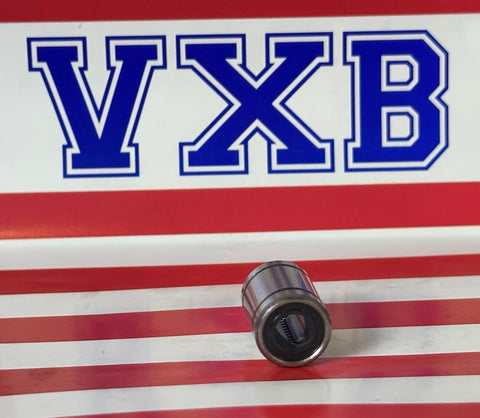

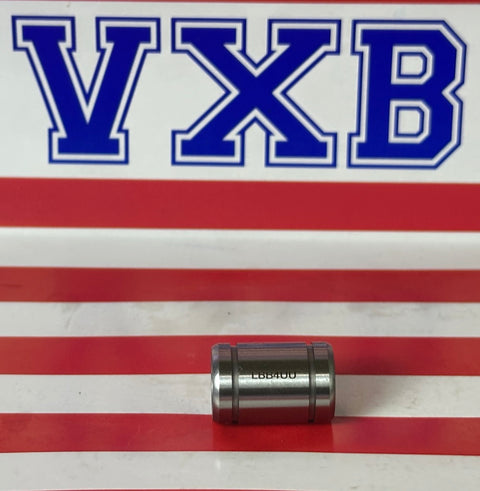

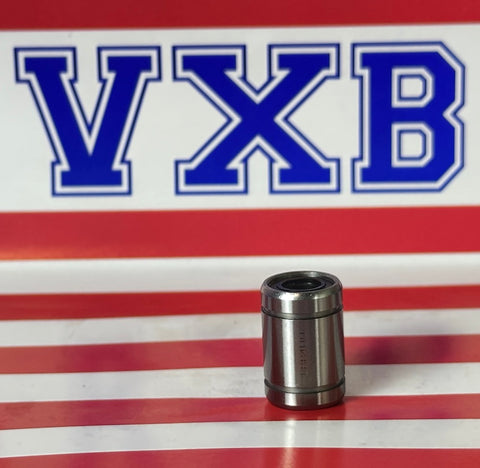

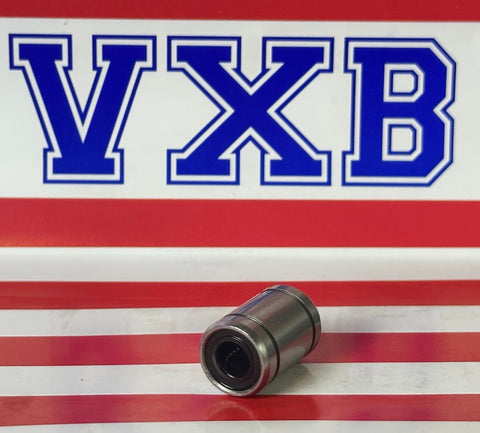

LBB4UU 1/4 inch Sealed Linear Motion Ball Bushing
$27.99
SKU: LBB4UU
UPC: 00193019068953
UPC: 00193019068953
Item: LBB4UU Linear Motion Ball Bushing
Type: Linear Motion Ball Bushing
Shaft Diameter: 1/4" inch
Quantity: One Bearing
Dynamic load rating: 59 N
Type: Linear Motion Ball Bushing
Shaft Diameter: 1/4" inch
Quantity: One Bearing
Dynamic load rating: 59 N
| LBB4UU 0.25 inch Ball Bushing Linear Systems |
LBB4UU is a 1/4" Bore linear motion ball bushings/bearings, LBB4UU has built in rubber Seals on both sides, inner diameter(bore) is 1/4" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushings, series mainly used in the USA.
|
| Major dimensions and tolerance (inches) | Eccentricity (inch) |
Radial clearance (inch) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||
| 1/4" | 0-00035 | 5/16" | 0-0.004 | 1/2" | 0-.008 | 23/64" | 0-.008 | 9/32" | 19/64" | 0.0003 | -0.001 |
