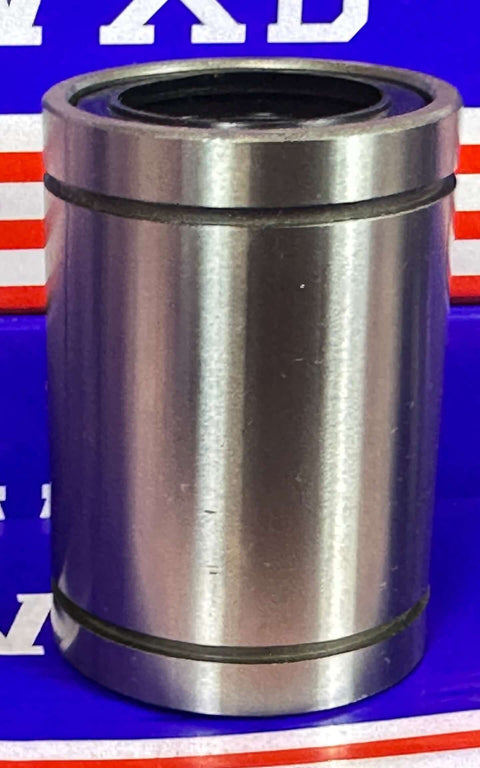

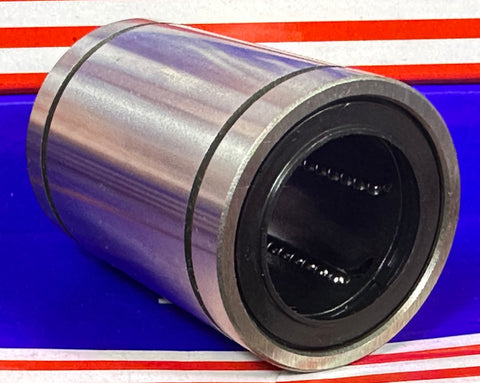

LBB16UU 1" inch Sealed Linear Motion Ball Bushing
Regular price
$13.39
Sale price$38.99you save $25.60
| LBB16UU with Seals on both sides Bearing Linear Systems |
LBB16UU 1" Bore linear motion ball bushing/bearing, LBB16UU has Seals on both sides, inner diameter(bore) is 1" inch dimensions with resin retainer, Bearing is a high accuracy grade linear bushing, series mainly used in the USA.
|
| Major dimensions and tolerance (inches) | Eccentricity (inch) |
Radial clearance (inch) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||||
| inch | tolerance | inch | tolerance | inch | tolerance | inch | tolerance | ||||
| 1" | 0-0.0004 | 1-9/16" | 0-0.00065 | 2-1/4" | 0-.012 | 1-3/4" | 0-.012 | 11/16" | 1-57/64" | 0.0006 | -0.0002 |
