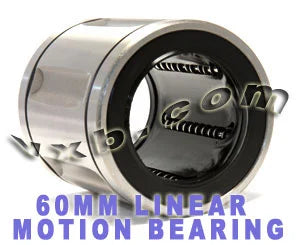

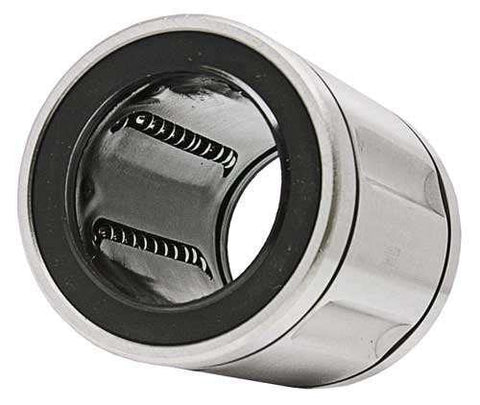

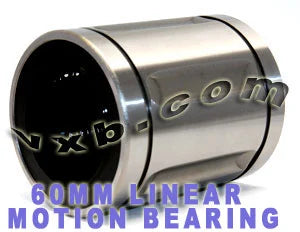

LB60UU 60mm Ball Bushing 60x90x110 Linear Motion Bearings

No reviews
$75.75
SKU: Kit12132
UPC: 00193019208151
Item: LB60UU Bearing
Type: Linear Ball Bushing
Ball circuit: 6
Size: 60 x 90 x 110 mm
Quantity: One Bearing
Linear Ball Bushings LB60UU
Works with 60mm Shafts
60mm x 90mm x 110mm


LB60UU Linear Ball Bushing works with a 60 mm Shafts, Size is 60mm x 90mm x 110mm, the inner Diameter is 60mm, the outer Diameter is 90mm and the Length is 110mm.
  • Item: LB60UU Bearing
  • Type: Linear Ball Bushing
  • Ball circuit: 6
  • Size: 60 x 90 x 110 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 4,700 N
  • Static load rating Cor: 10,000 N

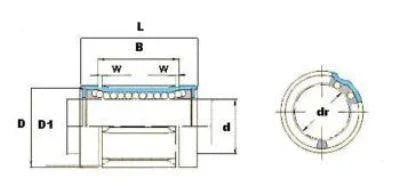

Major dimensions and tolerance (mm)
Eccentricity
Radial clearance
(mm)
d D L B W D1 h1 Precision
(mm)
High
(mm)
mm tolerance mm tolerance mm tolerance mm tolerance
Precision High
60 0-9 0-15 90 0-22 110 0-300 85 0-300 3.15 86.5 30 17 25 -13
