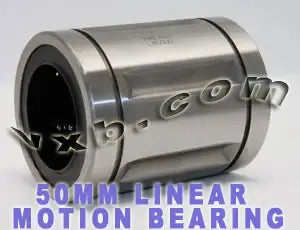

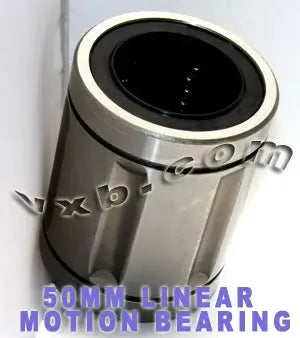

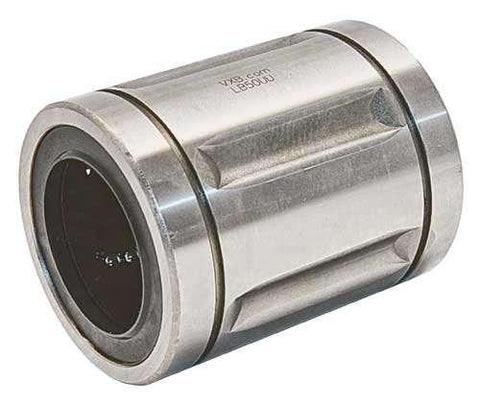

LB50UU 50mm Ball Bushing 50x80x100 Linear Motion Bearings

$19.99 $67.99you save $48.00
Quantity
-
+
Save More When You Buy More
  • Quantity exceeds stock. Available quantity may still be added to cart.
 More payment options
SKU: Kit12131
UPC: 00193019208144
Item: LB50UU Bearing
Type: Linear Ball Bushing
Ball circuit: 6
Size: 50 x 80 x 100 mm
Quantity: One Bearing
Linear Ball Bushings LB50UU
Works with 50mm Shafts
50mm x 80mm x 100mm


LB50UU Linear Ball Bushing works with a 50mm Shafts, Size is 50mm x 80mm x 100mm, the inner Diameter is 50mm, the outer Diameter is 80mm and the Length is 100mm.
  • Item: LB50UU Bearing
  • Type: Linear Ball Bushing
  • Ball circuit: 6
  • Size: 50 x 80 x 100 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 3,820 N
  • Static load rating Cor: 7,940 N

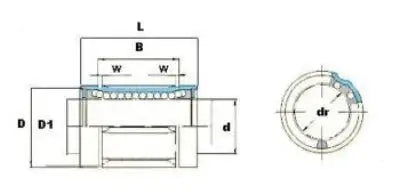

Major dimensions
and tolerance (mm)
Eccentricity
Radial clearance
(mm)
d D L B W D1 h1 Precision
(mm)		 High
(mm)
mm tolerance mm tolerance mm tolerance mm tolerance
Precision High
50 0-8 0-12 80 0-19 100 0-300 74 0-300
