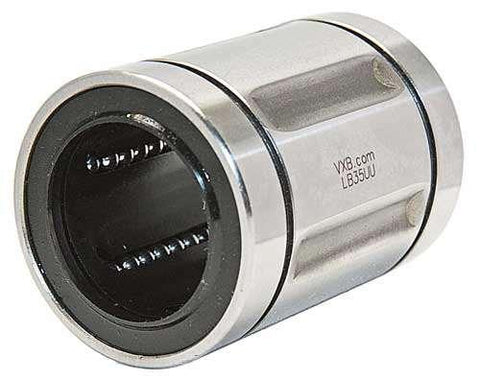

LB35UU 35mm Ball Bushing 35x52x70 Linear Motion Bearings

$7.77 $34.99you save $27.22
BUY MORE & SAVE
  • Quantity exceeds stock. Available quantity may still be added to cart.
 More payment options
SKU: Kit12130
UPC: 00193019208137
Item: LB35UU Bearing
Type: Linear Ball Bushing
Ball circuit: 6
Size: 35 x 52 x 70 mm
Quantity: One Bearing
Linear Ball Bushings LB35UU
Works with 35mm Shafts
35mm x 52mm x 70mm




LB35UU Linear Ball Bushing works with a 35mm Shafts, Size is 35mm x 52mm x 70mm, the inner Diameter is 35mm, the outer Diameter is 52mm and the Length is 70mm.
  • Item: LB35UU Bearing
  • Type: Linear Ball Bushing
  • Ball circuit: 6
  • Size: 35 x 52 x 70 mm
  • Quantity: One Bearing
  • Dynamic load rating Cr: 1,670 N
  • Static load rating Cor: 3,140 N




Major dimensions and tolerance (mm)
Eccentricity
Radial clearance
(mm)
d D L B W D1 h1 Precision
(mm)		 High
(mm)
mm tolerance mm tolerance mm tolerance mm tolerance
Precision High
35 0-8 0-12 52 0-19 70 0-300 49.5 0-300 2.1 49 17 12 20 -8
