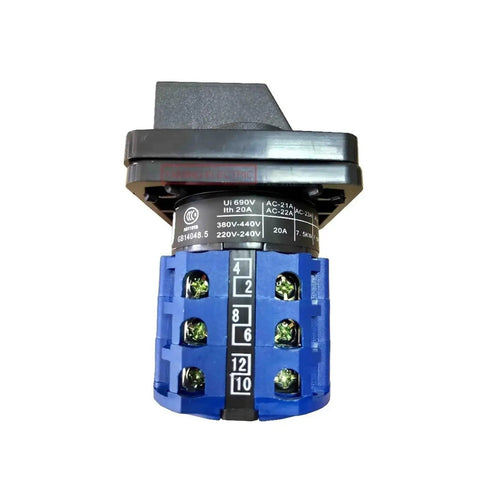

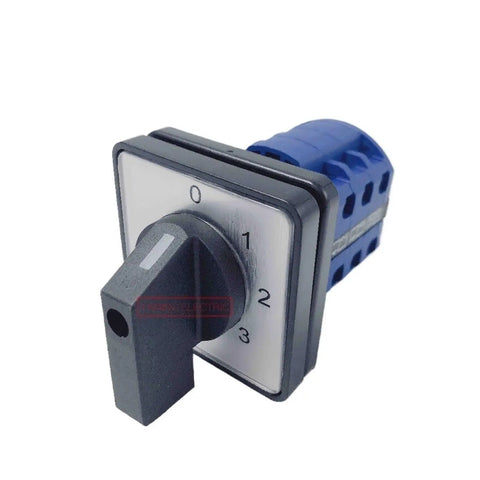

Latching Rotary Cam Switch With Four Positions Changeover Switch For Electrical Control Panels Panel Mount Workhorse LW28 20 LW26 20 With Screws 660V 20A Three Poles Three Stages
Meet the Workhorse of control panels: a robust Latching Rotary Cam Switch with four positions, designed to deliver precise, lockable changeover in demanding electrical control environments. The LW26-63/2M configuration combines reliability with versatile control, featuring three poles and three stages for compact, multi-circuit switching in a single actuator.
Key specifications
- Model: LW26-63/2M
- Type: Latching rotary cam switch with four-position changeover
- Electrical rating: 63A at 690V
- Poles/Stages: Three poles, three stages
- Mounting: Panel mount with included screws
- Finish: One-color finish
- Customization: Wiring diagram accepted; we can tailor wiring to your schematic
Why this switch stands apart
- Locking, low-contact chatter: The latching mechanism holds the switch firmly in its chosen position, preventing accidental changes in busy control panels.
- Three-pole, three-stage design: Control multiple circuits in synchrony with a single actuator, enabling clean, compact control logic for machines and automation systems.
- Four-position versatility: Implement multi-stage control sequences, safe routing, or deliberate power-down paths without extra hardware.
- Industrial-grade durability: Built to perform reliably under high-voltage and high-current demands typical in manufacturing and processing environments.
- Panel-mount convenience: Designed for straightforward installation in control enclosures, with screws included for a secure fit.
- Customization ready: If your wiring diagram is specialized, share it and we’ll align the switch wiring to your control logic.
Practical use cases
Ideal for electrical control panels in manufacturing lines, machine tooling, conveyors, and process automation. Typical applications include:
- Multi-circuit power routing within a single control station
- Sequential control for conveyors, feeders, and automated feeders
- Controlled shutdown pathways and fault isolation in emergency or maintenance scenarios
What to know before you buy
- Confirm that your panel space accommodates a three-pole, three-stage rotary switch with four positions.
- Ensure wiring diagram compatibility and the required terminal configuration for three poles.
- Verify system requirements align with the rated 63A at 690V for this configuration.
With its combination of durable construction, four-position versatility, and three-pole three-stage control, this latching rotary cam switch stands out as a reliable, long-lasting solution for engineers and techniciansbuilding or upgrading electrical control panels. It’s a practical, purpose-built component that delivers predictable, safe operation and simplifies complex control schemes.
