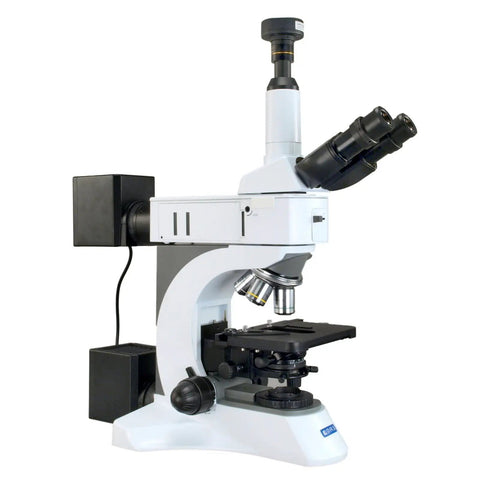

Lab Grade Metallurgical Infinity Polarizing Darkfield Microscope Kit With 10MP USB Camera, 50X To 1500X Magnification, EW10X22 And EW15X Eyepieces, Plan Infinity Achromatic Objectives, Built For Crystal Clear Microstructure Imaging
✔️ 50X-1500X magnification, EW10X/22 & EW15X eyepieces, plan infinity objectives
This lab-grade metallurgical polarizing darkfield microscope kit is built for crystal-clear microstructure imaging. It’s ideal for metallurgical work, mineral identification, crystal analysis, and inspecting electronic ICs in research labs and quality-control environments.
✅ Total magnification range across multiple objectives: 50X to 1500X
✅ Eyepieces: EW10X/22 and EW15X for high eyepoint viewing

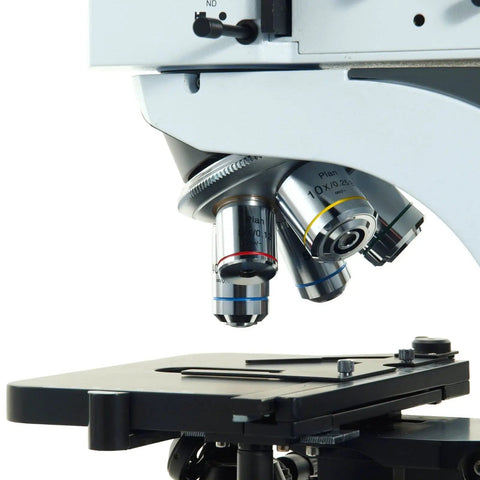

✅ Objectives: plan infinity achromatic, including 5X, 10X (darkfield/brightfield), 20X (darkfield/brightfield), 40X, 50X, 100X (dry and oil options)
✅ Polarizing kit with holder, analyzer, and 0°-90° graduations
✅ Siedentopf trinocular head, 30° inclined, 360° rotatable, IPD 48-75 mm
✅ Double-layer mechanical stage, 74 mm x 50 mm translational range
✅ Illumination: transmitted and reflected light via 24V/100W halogen lamps, adjustable
✅ Condenser NA0.9/0.25 with iris diaphragm and center adjustment

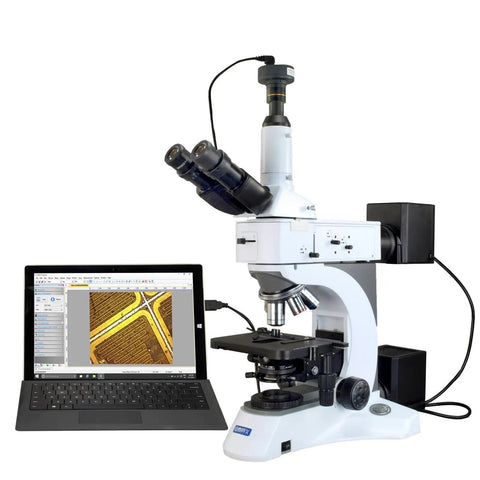

✅ Camera: 10 MP USB digital camera, 3584x2748 resolution, 0.5x reduction lens
✅ Includes driver on CD and 0.01 mm stage micrometer; 5-year warranty
💡 What is a lab-grade metallurgical polarizing darkfield microscope used for in crystal imaging?
This handy instrument helps reveal crystal structures and microfeatures in metals, minerals, and ICs under polarized light. - Crystal imaging and microstructure analysis in metals and minerals - Polarized light reveals birefringence and crystal orientation - Metallurgical, mineral ID, crystal research, and electronic inspection - Digital capture with 10MP USB camera for live viewing and records✝️
