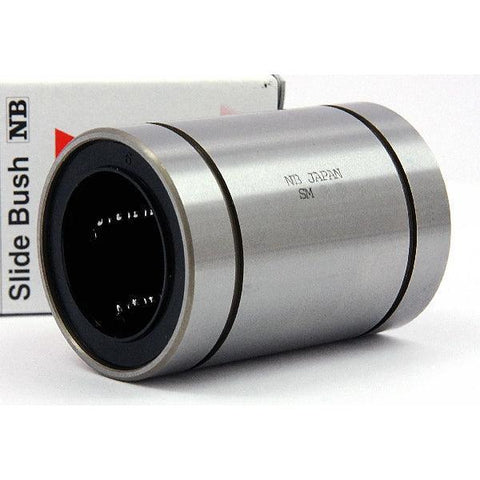

KB20GW NB Bearing 20mm Ball Bushings Linear Motion Bearings
No reviews
Title
$47.95
SKU: KB20GW_NB
Item: KB20GW NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 20mm
Number Of Ball Circuits: 5
Quantity: One Bearing
Type: Linear Ball Bushing
Shaft Diameter: 20mm
Number Of Ball Circuits: 5
Quantity: One Bearing

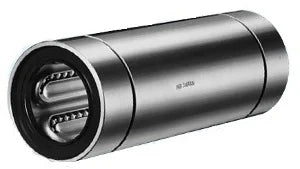

KB20GW NB Double Wide Type:Slide Unit Made in Japan:NB Linear Systems |
KB20GW NB Double Wide Type Bearing, the inner diameter is 20mm, retainer material is resin, Series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

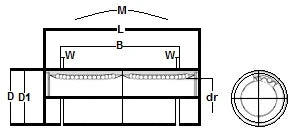

Major Dimensions | Eccentricity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|
dr | D | L | B | W | D1 | |||||
mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | |||
20 | 1-11 | 32 | 0-13 | 80 | 0-0.3 | 61 | 0-0.3 | 1.6 | 30.5 | 17 |
