K12-65mm Rotary Table With 54mm Tailstock And 4 To 1 Reduction For CNC Router Engraver 4th Axis Includes K02-63mm 4 Jaw Chuck And Nema17 Stepper Motor

65mm K12 Rotary Table Kit for CNC Routers with Tailstock
✔️ 65mm rotary table kit with 4:1 reduction, K02-63mm chuck, NEMA17

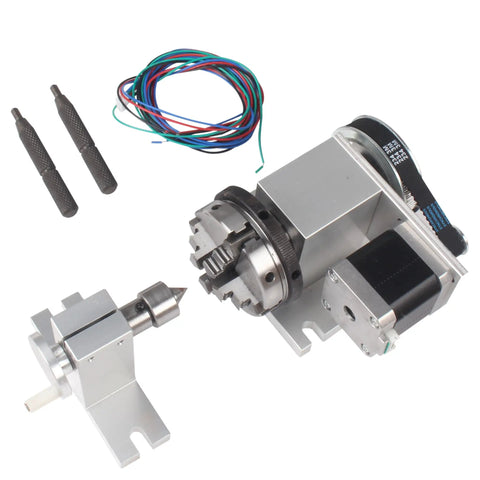

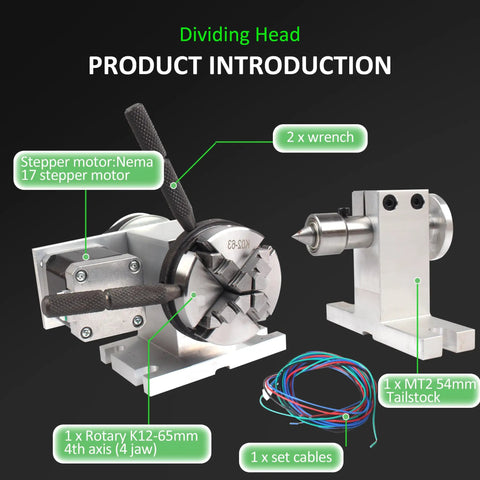

This compact rotary table kit is designed for CNC routers and engraving machines, enabling precise multi-axis positioning and indexing. It includes a 65mm table, 54mm tailstock, a 63mm four-jaw chuck, and a NEMA17 stepper motor for reliable control in hobby or light-industrial setups. Pack size: 1 set.

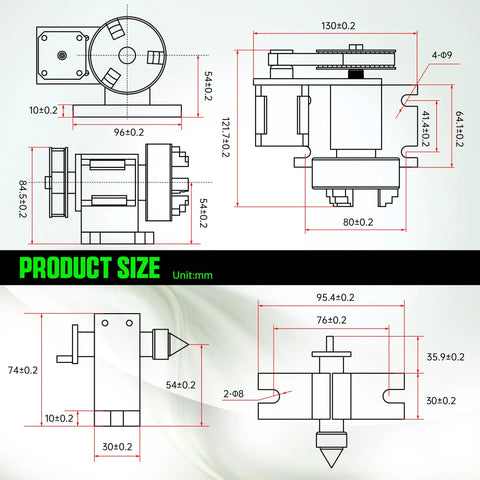

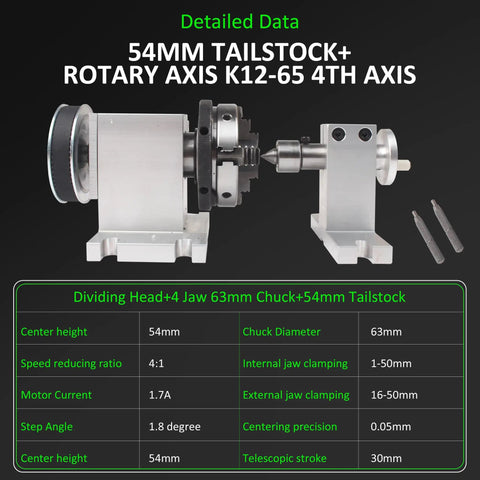

✅ K12-65mm parameters: center height 54mm (2.12 in); total height 85mm (3.35 in); angle 0.3°/step; telescopic stroke 20mm (0.78 in); speed reducing ratio 4:1

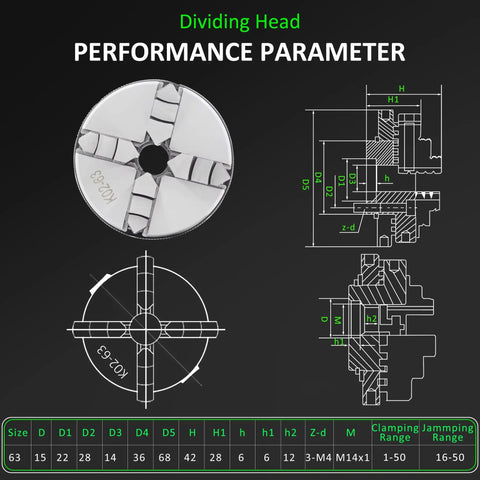

✅ K02-63mm 4-jaw chuck: clamping range 1-50mm (0.04-1.97 in); hold tight 16-50mm (0.63-1.97 in); centering precision 0.05mm (0.0019 in)
✅ Wiring: Black to A+, Green to A-, Red to B+, Blue to B-
✅ Nema17 stepper motor: 2-phase, 1.8° per step, 1.7 A, 45 Ncm (64 oz-in)
✅ 54mm tailstock: height 54mm (2.12 in); telescopic stroke 30mm (1.18 in); axial lock key for riding stock

💡 What is a CNC rotary table used for in precision milling and engraving?

A handy device for enabling precise rotation of the workpiece across multiple axes. - Handy for engraving, drilling, and contouring on complex shapes - Helpful for alignment with tailstock and chuck - Works with stepper motors for programmable rotation
