IP65 Yellow CNC Router Tool Sensor Probe 5mm Stroke Mach3 Z Axis Touch Setter Changer With 0.005mm Accuracy Normally Closed Pro Grade Performance For Engravers And Hobby CNC Machines
✔️ Includes 1 unit, IP65 rated, 0.005mm repeatability, NC output

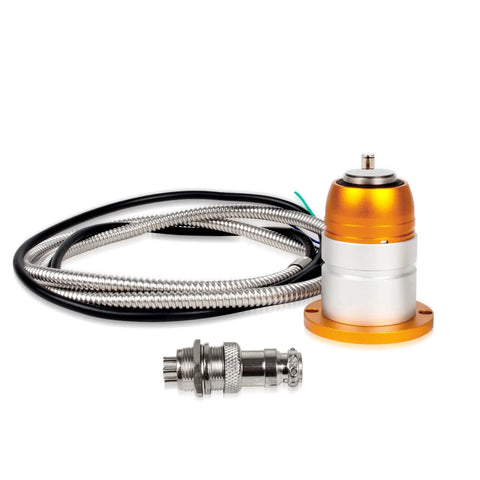

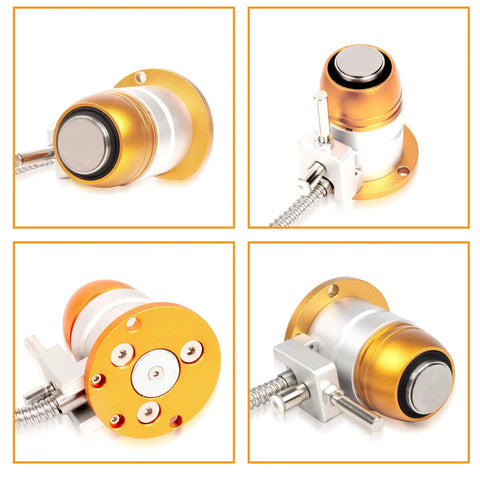

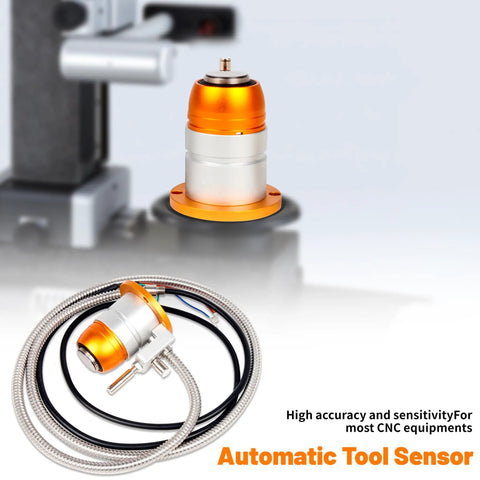

This IP65 yellow CNC router sensor probe is used to set tool length and trigger precise tool-zero references in Mach3 and other control systems. It’s typically mounted near the spindle or carriage on engravers and hobby CNC machines to improve repeatability in touch-off sensing and tool measurement tasks.

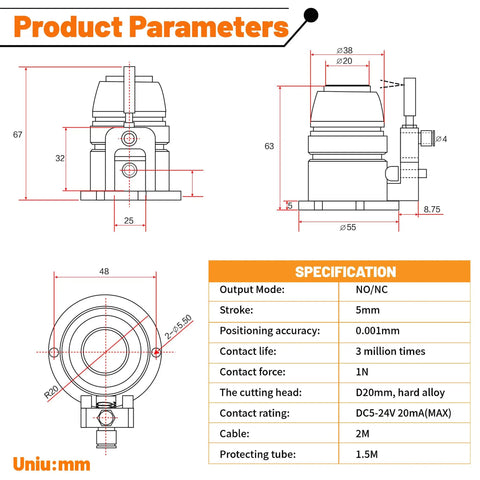

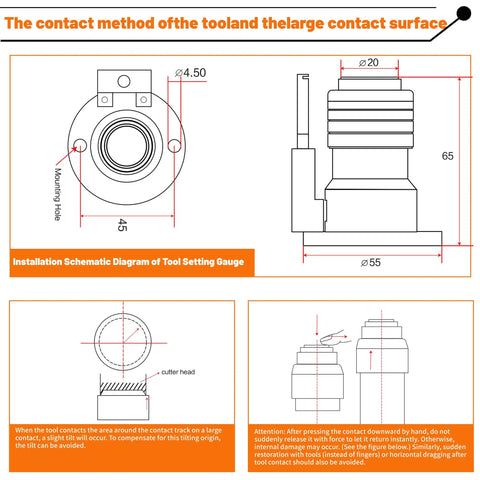

✅ Pre-travel: 0; Travel: 5mm; Repeatability: 0.005mm; Operation speed: 50-200mm/min; Contact Life: 3 million cycles; IP65 dustproof; Contact Force: 1N; Installation: vertical recommended.

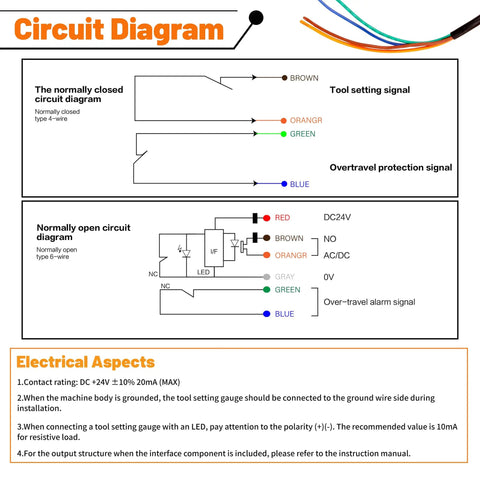

✅ Output mode: NC normally closed; Emergency stop when signal is disconnected; DC 24V, 20mA resistive load; load/current limiting required under special conditions.

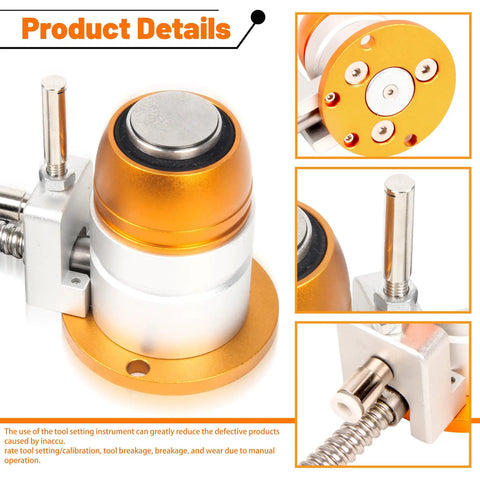

✅ Materials & specs: Tooling surface: Super-hard alloy; Surface treatment: Grinding 4S; Cable: Standard 2m oil-resistant; Cable sheath: 8mm stainless steel, 1.5m long, tensile strength 30N, bending radius R7.
✅ Higher precision: Tool tip contact directly measures position and dimensions for higher accuracy than indirect methods.
✅ No built-in amplifier: Direct input to NC or PLC, no drift from local power or temperature.
💡 What is a CNC router tool sensor probe used for in precise Z-axis setup? This handy device helps set tool length, verify repeatable positioning, and trigger NC control signals. - Highly accurate 0.005mm repeatability - IP65 dustproof design for harsh shop conditions - NC normally closed output integrates to Mach3/ PLC - 5mm stroke provides reliable tool position sensing
✝️
