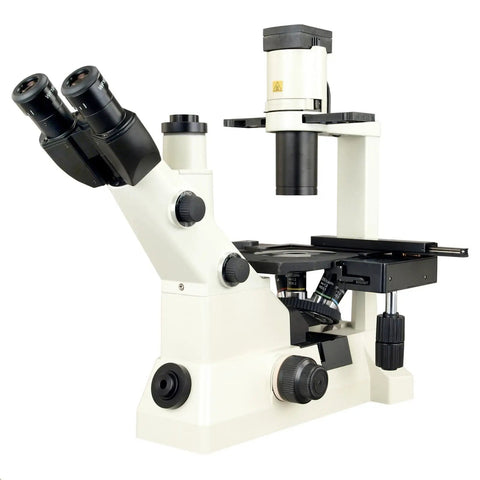

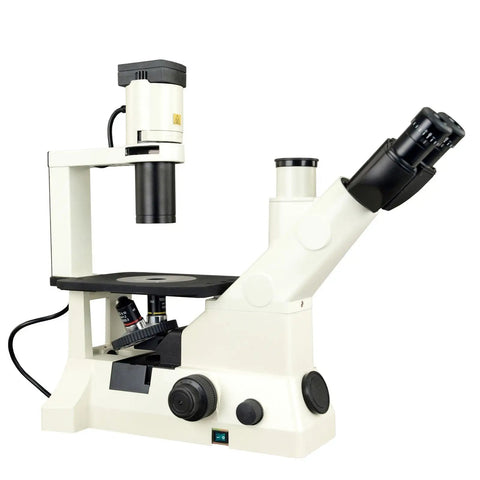

Inverted Phase Contrast Microscope With 40X 100X 200X 400X Magnification, Infinity Plan Phase Contrast And Brightfield Optics, Crisp Lab Imaging For Classrooms, Research, And Hobbyist Use
Regular price
$7,057.95
Sale price$14,144.00you save $7,086.05
Inverted Phase Contrast Microscope with 40X-400X Optics
✔️ 40X-400X magnification, infinity plan phase contrast, Siedentopf
✅ Objective: Infinity plan achromatic 4X/0.10 (WD 22.3mm)
✅ Infinity plan phase contrast 10X/0.25 (WD 6.2mm)
✅ Infinity plan phase contrast 20X/0.40 (WD 3.1mm)
✅ Infinity plan phase contrast 40X/0.55 (WD 2.2mm)
✅ Viewing Head: Siedentopf binocular 45°
✅ Interpupillary distance 50-70 mm; ocular tube diameter 30 mm
✅ Revolving nosepiece: quintuple
✅ Stage: Plain 230 mm x 170 mm; X-Y stroke 120 mm x 80 mm
✅ Stage extensions and plates: working surface 189 mm x 70 mm, glass insert phi108 mm, metal holder plates 128 mm x 86 mm with slide slot 76 mm x 26 mm
✅ Terasaki holder plate: metal 138 mm x 86 mm; petri dish opening phi65 mm
✅ Petri dish holder plate: metal 81 mm x 56 mm; opening phi35 mm
✅ Focusing: Coaxial fine and coarse knobs on both sides; tension adjustable
✅ Illumination: Transmitted illumination 6V/30W halogen; light intensity adjustable
✅ Condenser: NA 0.3; WD 72 mm; removable for large working room
✅ Photo port: Upper port light split 20/80 (eyepiece/photo); Lower port 0/100 (eyepiece/photo)
✅ Camera adapters: C-mount and 23.2 mm port
✅ Color filters: phi45 mm; LBD light balancing filter; IF550 green; SIF800 infrared-eliminating filter
✅ Phase contrast accessories: phase contrast slider plate, center adjustable, centering telescope
✔️ 40X-400X magnification, infinity plan phase contrast, Siedentopf
The inverted phase contrast microscope is a versatile tool for classrooms, laboratories, and hobbyists, enabling live-cell imaging with phase contrast and brightfield optics.
✅ Eyepieces: 10X, 20mm wide field of view✅ Objective: Infinity plan achromatic 4X/0.10 (WD 22.3mm)
✅ Infinity plan phase contrast 10X/0.25 (WD 6.2mm)
✅ Infinity plan phase contrast 20X/0.40 (WD 3.1mm)
✅ Infinity plan phase contrast 40X/0.55 (WD 2.2mm)
✅ Viewing Head: Siedentopf binocular 45°
✅ Interpupillary distance 50-70 mm; ocular tube diameter 30 mm
✅ Revolving nosepiece: quintuple
✅ Stage: Plain 230 mm x 170 mm; X-Y stroke 120 mm x 80 mm
✅ Stage extensions and plates: working surface 189 mm x 70 mm, glass insert phi108 mm, metal holder plates 128 mm x 86 mm with slide slot 76 mm x 26 mm
✅ Terasaki holder plate: metal 138 mm x 86 mm; petri dish opening phi65 mm
✅ Petri dish holder plate: metal 81 mm x 56 mm; opening phi35 mm
✅ Focusing: Coaxial fine and coarse knobs on both sides; tension adjustable
✅ Illumination: Transmitted illumination 6V/30W halogen; light intensity adjustable
✅ Condenser: NA 0.3; WD 72 mm; removable for large working room
✅ Photo port: Upper port light split 20/80 (eyepiece/photo); Lower port 0/100 (eyepiece/photo)
✅ Camera adapters: C-mount and 23.2 mm port
✅ Color filters: phi45 mm; LBD light balancing filter; IF550 green; SIF800 infrared-eliminating filter
✅ Phase contrast accessories: phase contrast slider plate, center adjustable, centering telescope
💡 What is an inverted phase contrast microscope best used for in classrooms, labs, and hobbyist setups?
An inverted phase contrast microscope is handy for studying living cells and microorganisms in culture without staining.
- Handy for classroom demonstrations and student experiments
- Clear contrasts of transparent specimens in research and hobbyist projects
- Compatible with phase contrast and brightfield optics plus camera adapters
