Internally Piloted 4V230C 08 Pneumatic Solenoid Valve 5 Way 3 Position DC 12V Double Electrical Control Inlet Outlet Exhaust PT Quarter Inch Connections Operating Pressure 0.15 to 0.8 MPa for Industrial Pneumatics

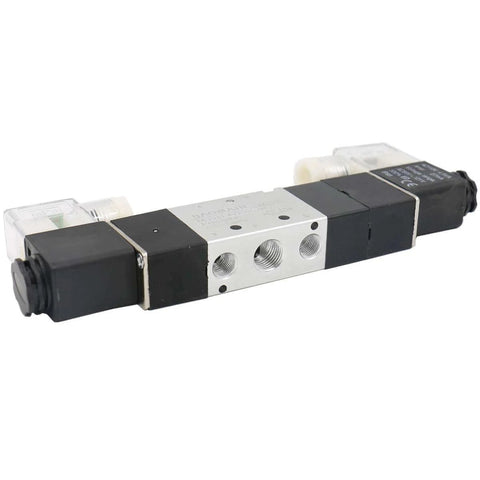

4V230C-08 12V DC 5-Way Pneumatic Solenoid Valve
✔️ DC12V coil; internally piloted; 3 position 5 way; PT1/4 ports

This compact solenoid valve is used to electronically control pneumatics in automation lines. It’s a common choice in CNC machines, packaging equipment, and factory automation where reliable air routing and directional control are needed.

✅ Model: 4V230C-08
✅ Type: Internally piloted 3-position 5-way

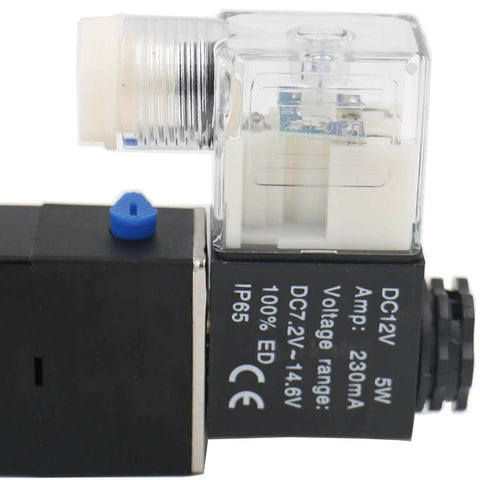

✅ Working voltage: DC12V

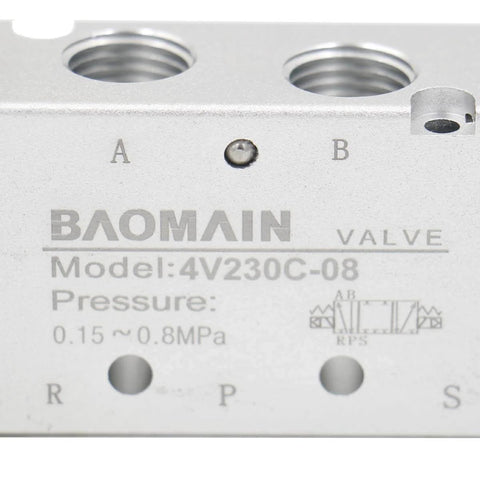

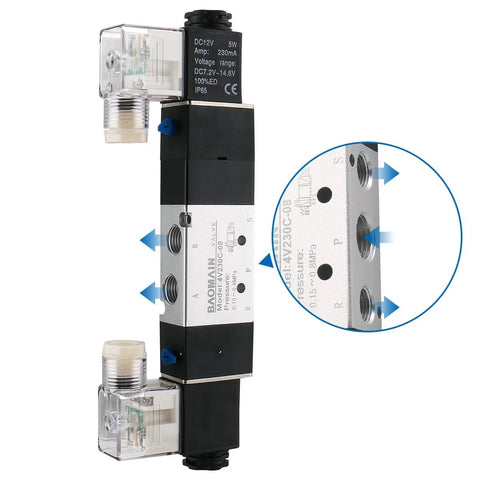

✅ Ports: Inlet/Outlet PT1/4, Exhaust PT1/8
✅ Inlet diameter: 11.5 mm (0.45 in)

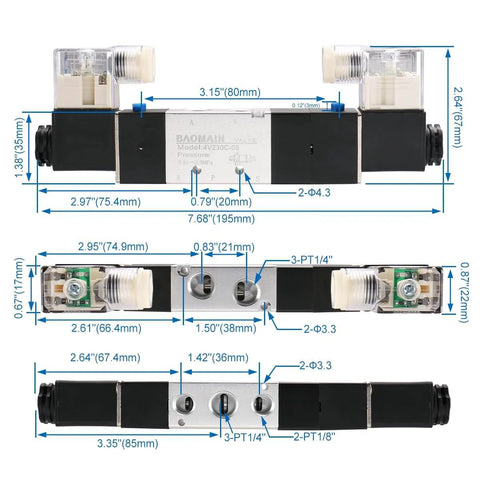

✅ Size: 190 x 65 x 22 mm (7.5 in x 2.6 in x 0.9 in)
✅ Weight: 355 g
✅ Package: 1 x Solenoid Valve

💡 What is a 5 way 3 position pneumatic valve used for in automation? This handy device controls air routing in automation systems. - 5 way 3 position valves route air to multiple ports in automation - DC12V solenoid actuation provides reliable switching - PT 1/4 inlet/outlet and PT 1/8 exhaust fit common piping - Operating pressure range 0.15-0.8 MPa supports industrial pneumatics
