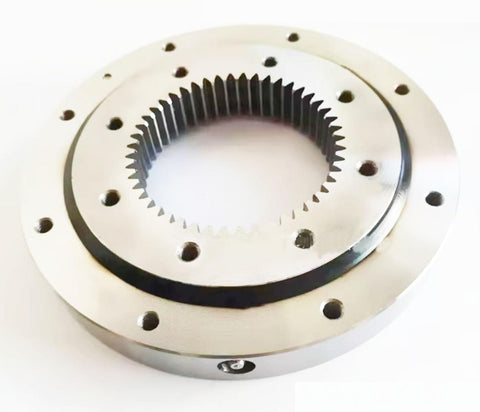

Internal Gear Rotary Bearing Module 1 With 60 Teeth, Outer Diameter 5.32 Inches, Tooth Tip Circle 2.28 Inches, Total Height 0.86 Inches, Outer Hole Spacing 4.72 Inches, Inner Hole Spacing 3.15 Inches, 8 Hole Installation, 1 Piece
✔️ 60 teeth internal gear, OD 5.32 in, 8-hole installation, 1 pc
This internal gear rotary bearing module combines a geared ring with an integrated bearing for compact, high-precision motion. It's ideal for automation, robotics, small CNC attachments, and any setup needing reliable rotary drive with a built-in bearing.
✅ 60 teeth internal gear, module 1, gear type: internal gear rotary bearing
✅ Outer diameter 5.32 in (135.1 mm)
✅ Tooth tip circle 2.28 in (58.0 mm)
✅ Total height 0.86 in (21.8 mm)
✅ Outer hole spacing 4.72 in (119.9 mm)
✅ Inner hole spacing 3.15 in (80.0 mm)
✅ 8-hole installation pattern, 1 piece per pack

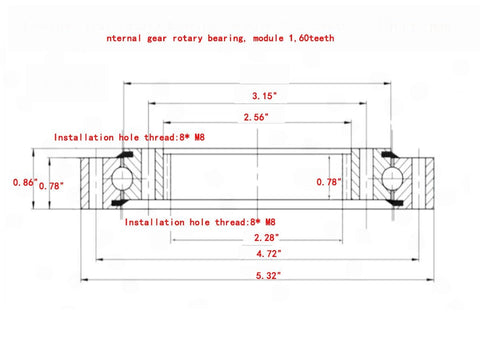

| Dimension | Inches | Millimeters |
|---|---|---|
| Outer diameter | 5.32 in | 135.1 mm |
| Tooth tip circle | 2.28 in | 58.0 mm |
| Total height | 0.86 in | 21.8 mm |
| Outer hole spacing | 4.72 in | 119.9 mm |
| Inner hole spacing | 3.15 in | 80.0 mm |
💡 What is the practical use of an internal gear rotary bearing module?
It’s a handy compact drive component that combines gearing with a built-in bearing for easier, precise rotation in automation and machinery.
- Handy for compact gear drives in automation systems - Improves alignment and load distribution in rotating assemblies - Great for robotic joints, small CNC toolheads, and motion fixtures - Reduces assembly steps by integrating gear and bearing in one unit
