Infrared Safety Beam Sensor for Automatic Sliding Doors, High Sensitivity Anti Clip Device, Built To Last Fireproof ABS Construction, 10 Meter Detection Range, Smart Microcomputer Control, Ideal For Home And Commercial Doors

Infrared Safety Beam Sensor for Sliding Doors, 1 Pack, 10m
✔️ 10 m detection; 12-30 V input; plug-in, fireproof ABS, easy install

This infrared safety beam sensor is designed for automatic sliding doors found in homes and commercial spaces. It uses a pair of infrared beams to detect obstructions, helping prevent doors from closing on people or objects. It's a straightforward replacement for worn or broken safety beams.

✅ Sensing distance up to 10 m
✅ Voltage AC/DC 12-30V
✅ Quiescent current 18 mA at 12V
✅ Working current 58 mA at 12V
✅ Emitting line blue wire 5.5 m
✅ Receiving line black wire 5.5 m
✅ Beam option: single or double
✅ Working temperature -42°C to 45°C, 10-90% RH

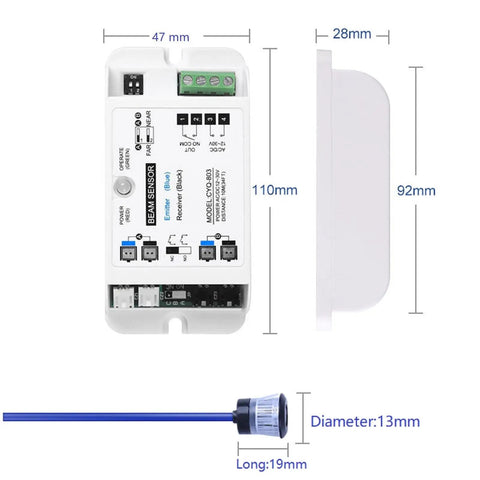

✅ Dimensions: beam sensor 110x47x28 mm; end 19x13 mm

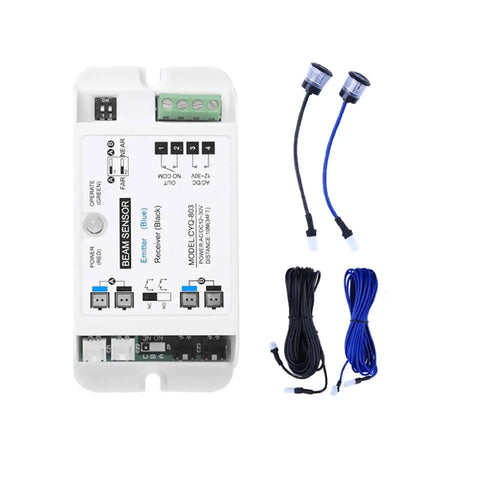

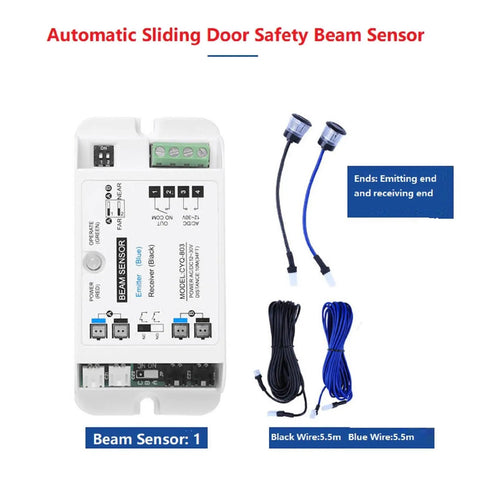

✅ Package includes: 1 beam sensor, emitting end, receiving end, 2 wires

💡 What is an infrared safety beam sensor used for in door systems? This handy overview explains its role.

- It detects obstacles in the door path using infrared beams
- It helps prevent doors from closing on people or objects
- It supports quick plug-and-play installation in homes and businesses
- It runs on 12-30V power and covers up to 10 m range
